| MECHANICAL SPECIFICATIONS | ||||

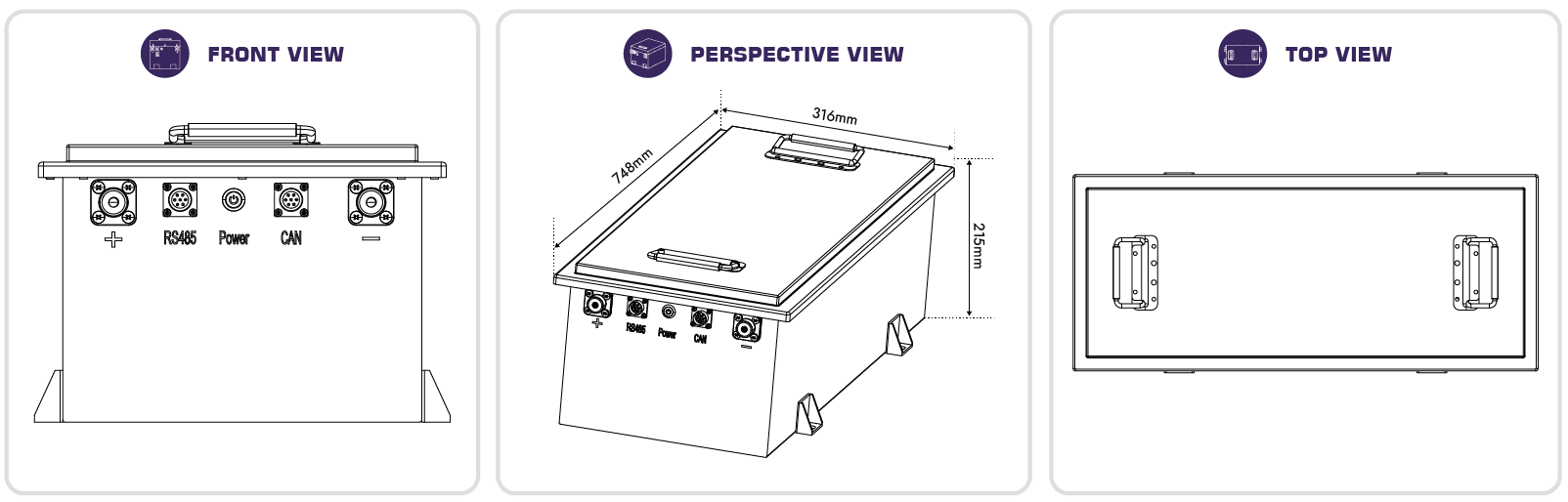

| Dimensions (L×W×H) | 29.45"×12.44"×8.46" | |||
| Weight | 153bs(69.4kg) | |||
| Terminal Type | M8 | |||
| CellConfiguration | 16S1P | |||
| Case Material | Powder Coated Steel | |||
| Enclosure Protection | Designed with IP65 Stardard | |||
| CellType-Chemistry | Prismatic-LiFePO4 | |||
| Communication | CAN,RS485,Bluetooth | |||
| ELECTRICAL SPECIFICATION | |||
| Nominal Voltage | 51.2V | ||
| Working Voltage | 40.0-58.4V | ||
| Recommended Voltage | 48.0V-57.0V | ||
| Nominal Capacity | 150Ah | ||
| Energy | 7680Wh | ||
| Capacity @25A | 360 min | ||
| Efficiency | 0.99 | ||
| Self Discharge | <3%per Month | ||
| CHARGE SPECIFICATIONS | ||||
| Charge Current | 5-52A | |||
| Peak Input Current | 30DA | |||
| Battery Charge Voltage Cut-0ff | 58.4V(3.65V for cell) | |||
| Release Voltage | 56.8V (3.55V for cell) | |||
| Charging Temp.Range | 34°F to 140°F[0-60°℃] | |||
| DISCHARGE SPECIFICATIONS | |||
| Maximum Continuous Discharge Current | 320A | ||
| Peak Discharge Current | 70OA±20A | ||
| Battery Discharge Voltage Cut-0ff | 40.OV (2.5V for cell) | ||
| Release Voltage | 43.2V (2.7 for cell) | ||
| Discharging Temp.Range | 14F to 140°F[-10-60°℃] | ||
