This Sentinel G5 specification lists a 51.2V 105Ah LiFePO4 battery with 5.376kWh nominal energy. CAN, RS485 and Bluetooth interfaces support communication.
Nominal Voltage
51.2 V
Nominal Capacity
105 Ah
Nominal Energy
5.376 kWh

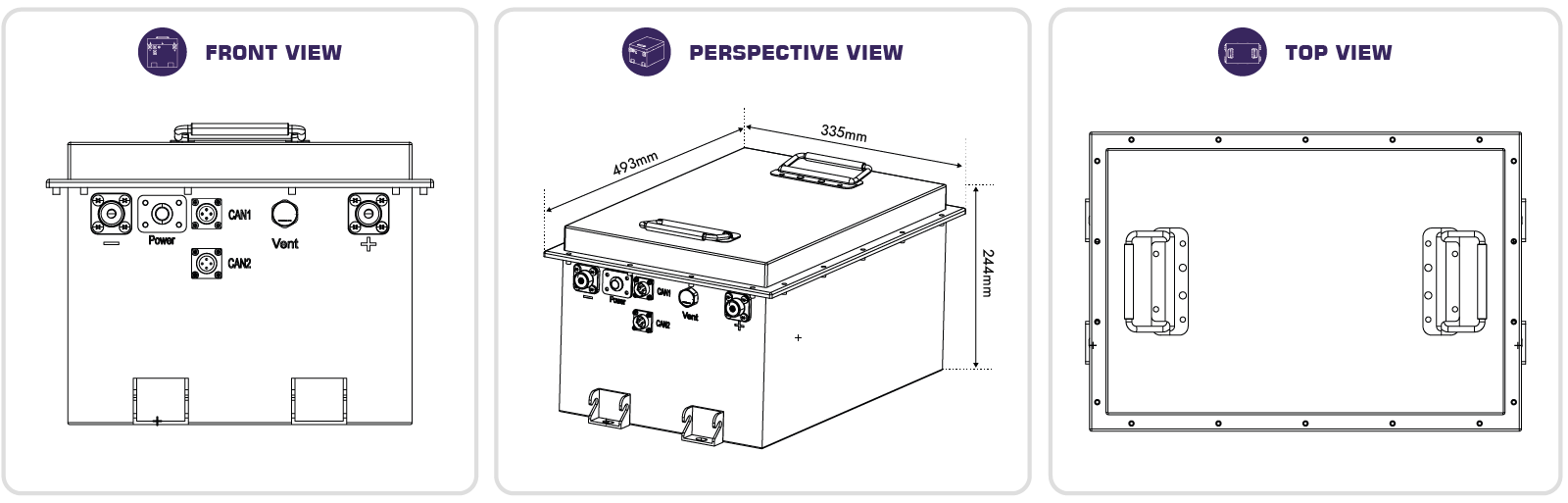

| Mechanical Specifications | ||||||
| Dimensions (L×W×H) | 19.41"×13.19"×9.61" | |||||
| Weight | 100.8 lb (45.7 kg) | |||||
| Terminal Type | M8 | |||||
| Cell Configuration | 16S1P | |||||
| Case Material | Powder Coated Steel | |||||
| Enclosure Protection | Designed with IP65 Standard | |||||
| Cell Type / Chemistry | Prismatic-LiFePO4 | |||||
| Communication | CAN, RS485, Bluetooth | |||||
| Electrical Specifications | |||
| Nominal Voltage | 51.2V | ||
| Working Voltage | 40.0-58.4V | ||
| Recommended Voltage | 48.0V-57.0V | ||
| Nominal Capacity | 105Ah | ||
| Energy | 5376Wh | ||
| Capacity @25A | 252 min | ||
| Efficiency | 0.99 | ||
| Self-Discharge | <3% per month | ||
| Charge Specifications | ||||||
| Charge Current | 5-30A | |||||
| Peak Input Current | 30DA | |||||
| Battery Charge Voltage Cut-Off | 58.4V(3.65V for cell) | |||||
| Release Voltage | 56.8V (3.55V for cell) | |||||
| Charging Temperature Range | 34°F to 140°F[0-60°℃] | |||||
| DISCharge Specifications | |||
| Maximum Continuous Discharge Current | 30OA | ||
| Peak Discharge Current | 50OA±20A | ||
| Battery Discharge Voltage Cut-Off | 40.OV (2.5V for cell) | ||
| Release Voltage | 43.2V (2.7 for cell) | ||
| Discharging Temperature Range | 14F to 140°F[-10-60°℃] | ||
This Sentinel G5 model is rated at 51.2V and 105Ah, equivalent to 5.376kWh of nominal energy.
Share the cart and controller model, battery-space dimensions and charger details with Wiren. The battery configuration should be reviewed against the vehicle and charging requirements before ordering.
