This Sentinel G3 specification lists 51.2V, 65Ah and 3.328kWh nominal energy in a LiFePO4 battery. CAN, RS485 and Bluetooth interfaces support monitoring and integration.
Nominal Voltage
51.2 V
Nominal Capacity
65 Ah
Nominal Energy
3.328 kWh

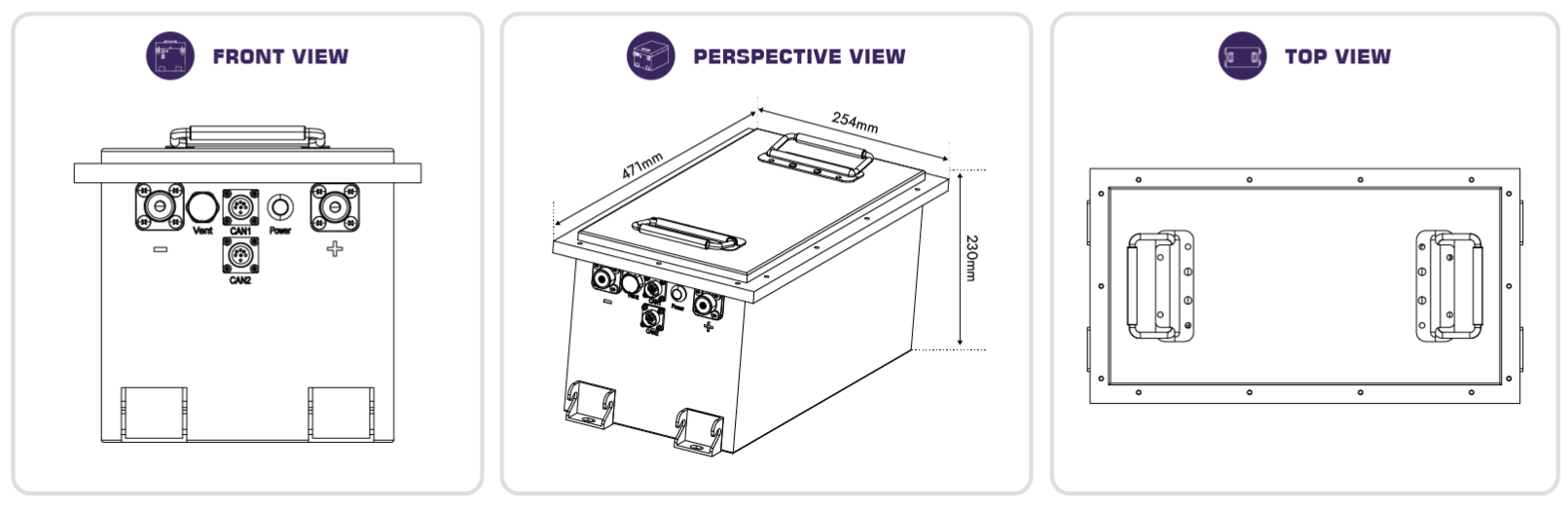

| Mechanical Specifications | ||||||
| Dimensions (L×W×H) | 18.54"×10.00"×9.06" | |||||
| Weight | 75.0 lb (34 kg) | |||||
| Terminal Type | M8 | |||||
| Cell Configuration | 16S1P | |||||
| Case Material | Powder Coated Steel | |||||
| Enclosure Protection | Designed with IP65 Standard | |||||
| Cell Type / Chemistry | Prismatic-LiFePO4 | |||||
| Communication | CAN, RS485, Bluetooth | |||||
| Electrical Specifications | |||
| Nominal Voltage | 51.2V | ||
| Working Voltage | 40.0-58.4V | ||
| Recommended Voltage | 48.0V-57.0V | ||
| Nominal Capacity | 65Ah | ||
| Energy | 3328Wh | ||
| Capacity @25A | 156 min | ||
| Efficiency | 0.99 | ||
| Self-Discharge | <3% per month | ||
| Charge Specifications | ||||||
| Charge Current | 5-30A | |||||
| Peak Input Current | 17OA | |||||
| Battery Charge Voltage Cut-Off | 58.4V(3.65V for cell) | |||||
| Release Voltage | 56.8V (3.55V for cell) | |||||
| Charging Temperature Range | 34°F to 140°F[0-60°℃] | |||||
| DISCharge Specifications | |||
| Maximum Continuous Discharge Current | 170A | ||
| Peak Discharge Current | 50OA±20A | ||
| Battery Discharge Voltage Cut-Off | 40.OV (2.5V for cell) | ||
| Release Voltage | 43.2V (2.7 for cell) | ||
| Discharging Temperature Range | 14F to 140°F[-10-60°℃] | ||
