The Sentinel G2 is a 38.4V 105Ah LiFePO4 golf cart battery with 4.032kWh nominal energy. Its specification lists CAN, RS485 and Bluetooth communication.
Nominal Voltage
38.4V
Nominal Capacity
105 Ah
Nominal Energy
4.032 kWh

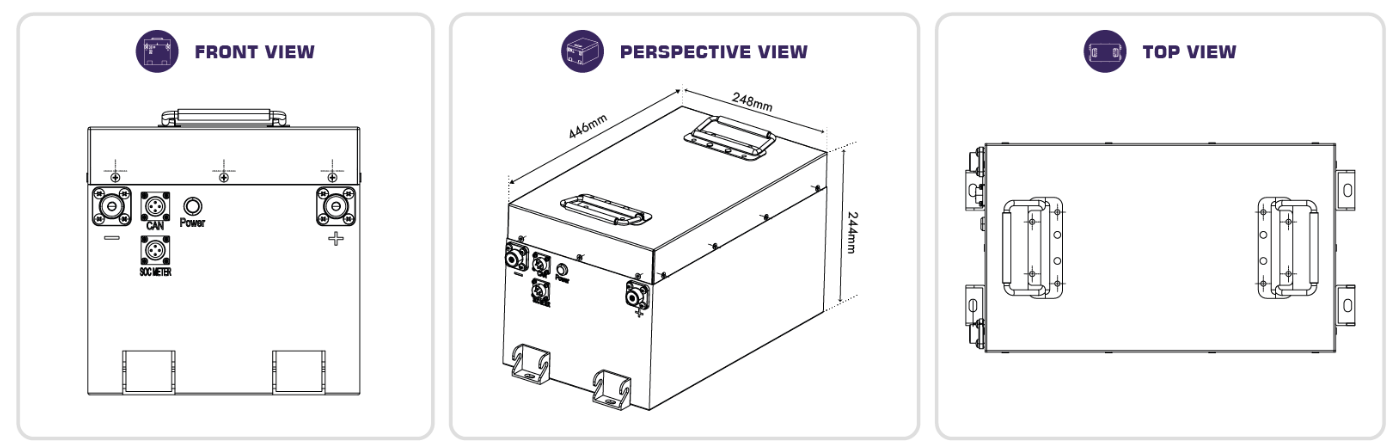

| Mechanical Specifications | ||||
| Dimensions (L×W×H) | 17.56"×9.75”×9.63" | |||
| Weight | 88.18 lb (40 kg) | |||
| Terminal Type | M8 | |||
| Cell Configuration | 12S1P | |||
| Case Material | Powder Coated Steel | |||
| Enclosure Protection | Designed with IP65 Standard | |||
| Cell Type / Chemistry | Prismatic-LiFePO4 | |||
| Communication | CAN, RS485, Bluetooth | |||
| Electrical Specifications | |||
| Nominal Voltage | 38.4V | ||
| Working Voltage | 30.0-43.8V | ||
| Recommended Voltage | 36.DV-42.6V | ||
| Nominal Capacity | 105Ah | ||
| Energy | 4032Wh | ||
| Capacity @25A | 252 min | ||
| Efficiency | 0.99 | ||
| Self-Discharge | <3% per month | ||
| Charge Specifications | ||||
| Charge Current | 5-30A | |||
| Peak Input Current | 30DA | |||
| Battery Charge Voltage Cut-Off | 43.8V(3.65V for cell) | |||
| Release Voltage | 42.6V (3.55V for cell) | |||
| Charging Temperature Range | 34°F to 140°F[0-60°℃] | |||
| DISCharge Specifications | |||
| Maximum Continuous Discharge Current | 30OA | ||
| Peak Discharge Current | 50OA±20A | ||
| Battery Discharge Voltage Cut-Off | 30.OV (2.5V for cell) | ||
| Release Voltage | 32.4V (2.7V for cell) | ||
| Discharging Temperature Range | 14F to 140°F[-10-60°℃] | ||
