Easy installation, operation and maintenance
Highly integrated, convenient for transportation, operation and maintenance
Fully pre-assembled, no need for on-site installation of battery modules
Fully functional debugging, meets the requirements for many scenarios with simple configurations available for use
Industrial park
Villa residence
Farm
Power station
Product Features
Easy installation, operation and maintenance
Highly integrated, convenient for transportation, operation and maintenance
Fully pre-assembled, no need for on-site installation of battery modules
Fully functional debugging, meets the requirements for many scenarios with simple configurations available for use
Safe and Reliable
Multi-level protection for AC and DC, the system quickly disconnects during anomalies
Fire detection and protection at PCK level and cluster level, effectively managing dual detection in battery and electrical compartments for comprehensive coverage
Flexible Configuration
Supports 0.5C charging/discharging
Supports 4 units in parallel in DC side
Supports 4 units in parallel in AC side (Determined by the selected hybrid inverter)
Compatible with diesel generation, photovoltaic systems, and uninterrupted switching (Determined by the selected hybrid inverter)
Long Operating Life, Support Full Power charge and discharge
Intelligent Air cooling ensure higher efficiency Intelligent Air cooling prolongs battery life
Battery cells operate in an environmentally friendly manner, ensuring charge and discharge power
Smart cooling system prevents heat accumulation
User-Friendly
Intelligence Remote support for strategy adjustments, configuration, and data viewing
Real-time status monitoring and fault logging, Enables fault warning and location identification
Built-in battery performance monitoring and recording capabilities
Seamless Switching
Seamless on-grid/off-grid switching with transfer time <20ms.

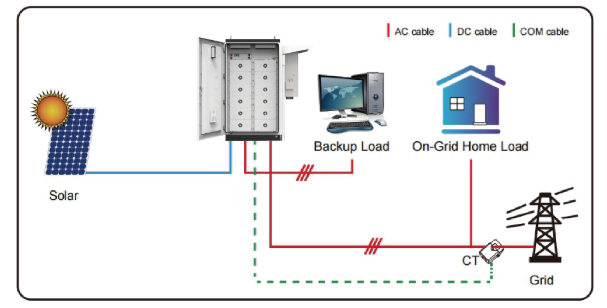

System Chart
Specification
| Module Model | Volt-EM261 |
| DC (Battery) | |
| Cells Type | LiFePO4 Lithium Iron Phosphate |
| Cell specification | 3.2V314Ah |
| Module of Battery | 20S1P (20.096kWh) |
| System of Battery | 260S1P |
| Battery Capacity | 261kWh |
| Max. Power | 130KW |
| Max. Current | 157A |
| Battery Rated Voltage | 832V (728V-936V) |
| General Data | |
| Cabinet Size(W * D * H) | 1178*1411*2043mm(1828*1411*2127mm)(add lifting ring and Inverter rain shield) |
| Weight | ≤2.8T |
| Max. cycle efficiency | 90%~99% |
| IP Rating | Optional(IP54/IP55) |
| Auxiliary Power Supply | Self-powered, Externally powered |
| Corrosion resistance rating | Optional(C3/C4/C5) |
| Operating Humidity Range | 0%~100%(Non-condensing) |
| Operating Temperature Range | -30°C~50°C(>45°Cderating) |
| Max. Operation Altitude | 3000m |
| Battery cabinet cooling method | Air Cooling |
| Fire safety configuration | Smoke detector, Heat detector, Gas-based fire extinguishing system, Pressure relief valve, Pack-level fire protection, Cluster-level fire protection, Water-based fire protection, Automatic pressure relief |
| Communication | 485, CAN |
| Communication Protocol | ModbusTCP |
| System protection | water ingress protection, fire protection, access control alarm |
|
Note: Some spare parts are available. For details, please consult with our sales for further communication. |
|
| Deye | SUN-60/70/75/80K-SG02HP3-EU-EM6/SUN-100/125K-SG02HP3-EU-GM10 |
| Solis |
S6-EH3P60K10-LV-YD-H/S6-EH3P75K10-LV-YD-H S6-EH3P80K10-NV-YD-H/S6-EH3P99.9K10-NV-YD-H S6-EH3P100K10-NV-YD-H/S6-EH3P125K10-NV-YD-H |
| Other hybrid inverter | Contact the business staff to confirm if the agreement matches |
