High cycle life
8000 cycles @70%DoD for effectively lower total of ownership cost.
Longer service life
Low maintenance batteries with stable chemistry.
Built in circuit protection
Battery Management System (BMS)is incorporated against abuse.
High cycle life
8000 cycles @70%DoD for effectively lower total of ownership cost.
Longer service life
Low maintenance batteries with stable chemistry.
Built in circuit protection
Battery Management System (BMS)is incorporated against abuse.
Better storage
Up to 6 months thanks to its extremely low self discharge (LSD)rate and no risk of sulphation.
Quickly recharge
Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.
Extreme heat tolerance
Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.
Lightweight
Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
Function
Support parallel operation

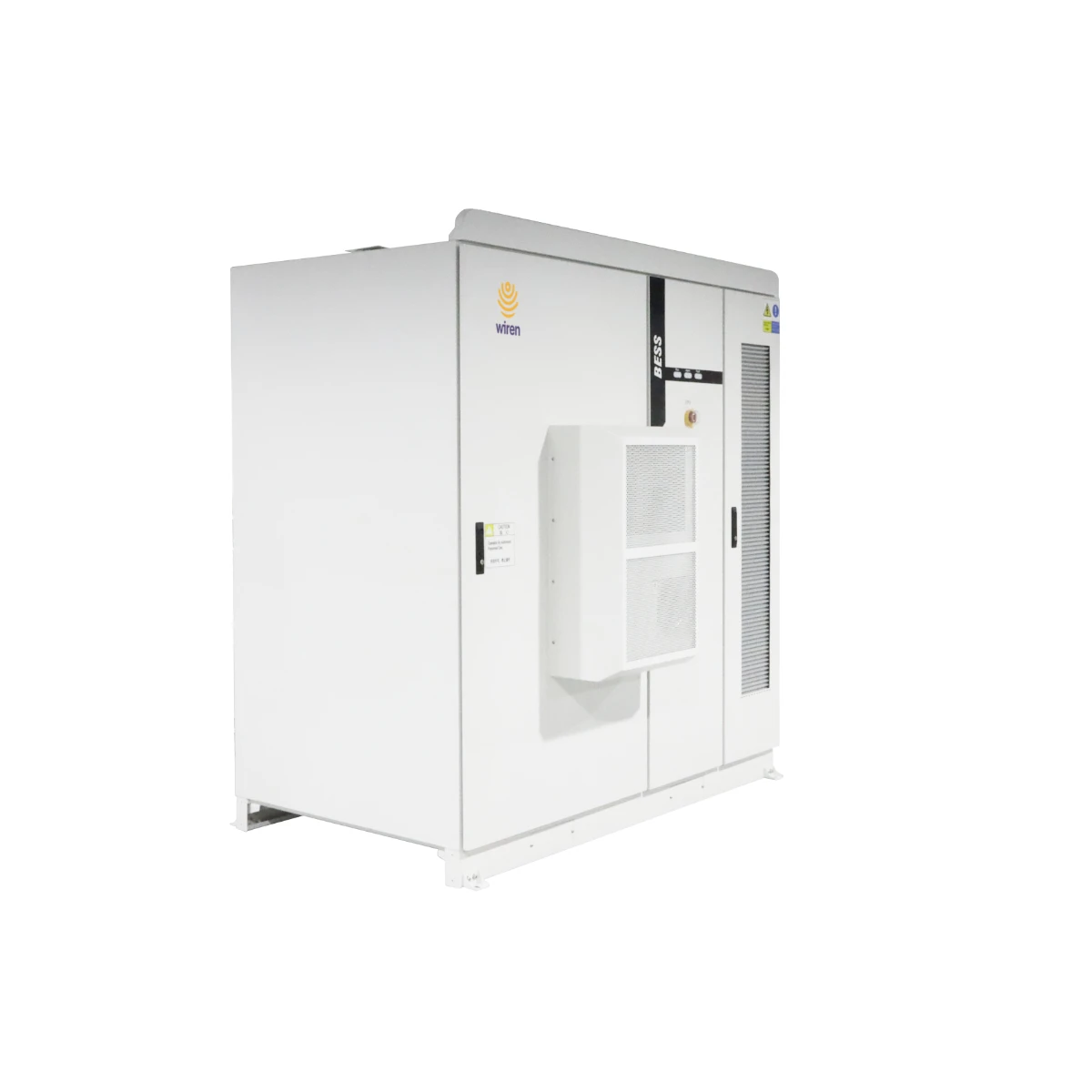

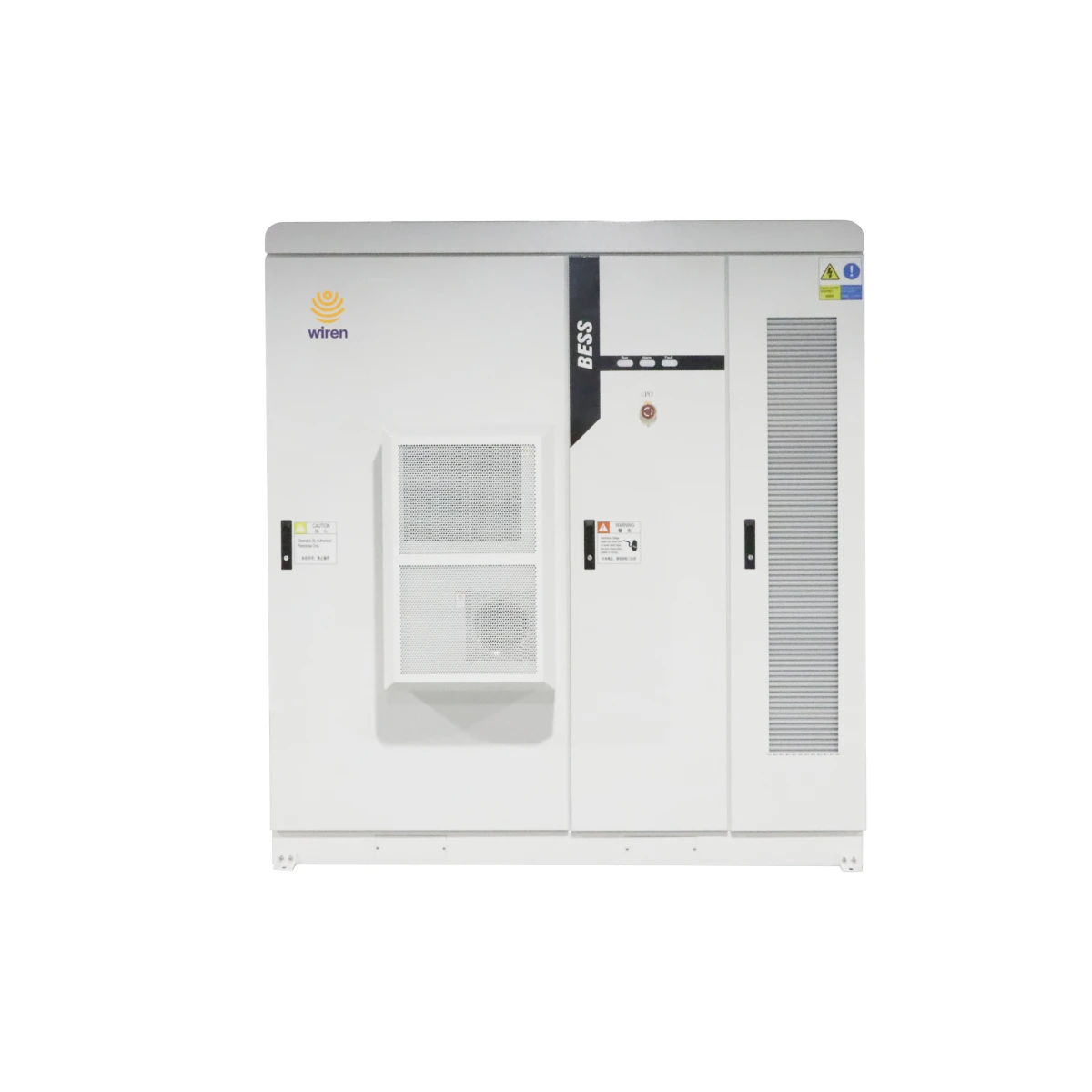

| Specifications | 125KW 261kwh |
| Cell | Lifepo4 Lithium lron phosphate |
| Pack | 3.2V314AH |
| Configuration of Battery | 260S1P |
| Battery capacity | 261kWh |
| Max. Power | 125KW |
| Max. Current | 157A |
| Battery Rated Voltage | 832V |
| Battery Voltage Range | 728V-936V |
| AC (On/Off Grid) | |
| Max. Power(kVA) | 137KVA |
| Active Power(kW) | 125KW |
| Rated Voltage(V) | 400V |
| Rated Current(A) | 180A |
| Voltage Range | 320V-460V |
| Rated Frequency | 50/60Hz |
| THDi | <3% |
| Range of Frequency | 45-55/55-65Hz |
| Specificaiton | |
| Cabinet Size ( W * D * H ) | 1585/1366/2055mm |
| Weight | ≤2.7T |
| Max. cycle efficiency | ＞90% |
| Protection | IP55 |
| Auxiliary Power Supply | Self-powered, Externally powered |
| Corrosion resistance rating | C3/C4 |
| Operating Humidity Range | 0%-100%(Non-condensing) |
| Operating Temperature Range | -30°C-50°C(>45°Cderating) |
| Max. Operation Altitude | 2000m |
| Battery cabinet cooling method | Intelligency Liquid Cooling |
| Fire safety configuration | Smoke detector, Heat detector, Gas-based fire extinguishing system, Pressure relief valve, Fire safety configuration Pack-level fire protection, Cluster-level fire protection, Water-based fire protection, Automoatic pressure relief |
| Communication | Ethernet、485、CAN |
| Communication Protocal | Modbus TCP |
| Note: Some spare parts are available. For details, please consult with our sales for further communicatioN. | |
