The NA48100 is a 48V 100Ah sodium-ion rack battery with 4.8kWh rated energy, a 53 kg IP22 enclosure, LCD and smart BMS. CAN, RS485 and RS232 interfaces support project integration.
48V
Nominal Voltage
100Ah
Rated Capacity
4.8kWh
Rated Energy
IP22
Enclosure Protection

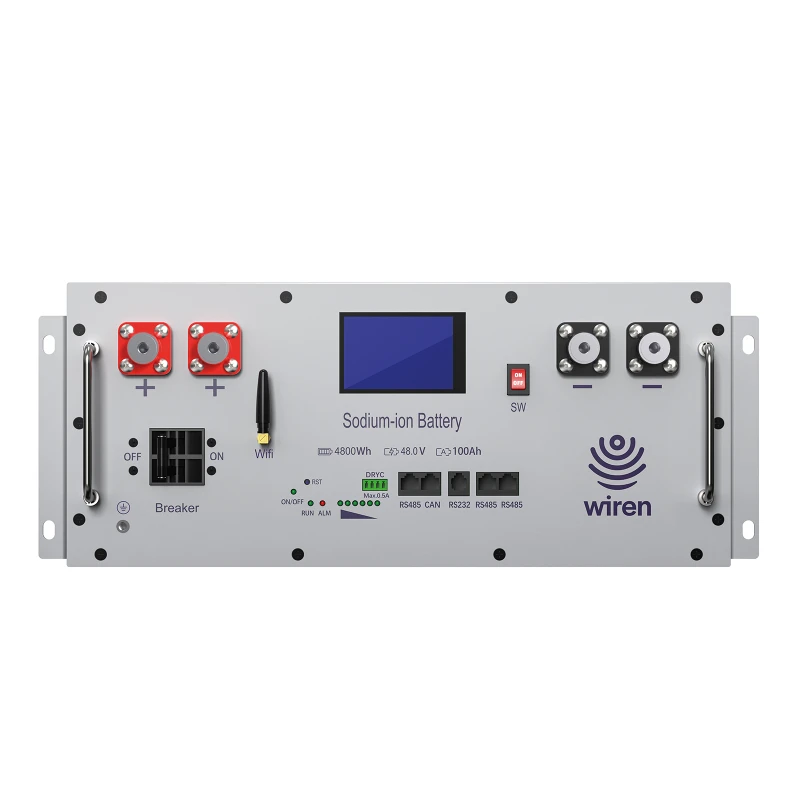

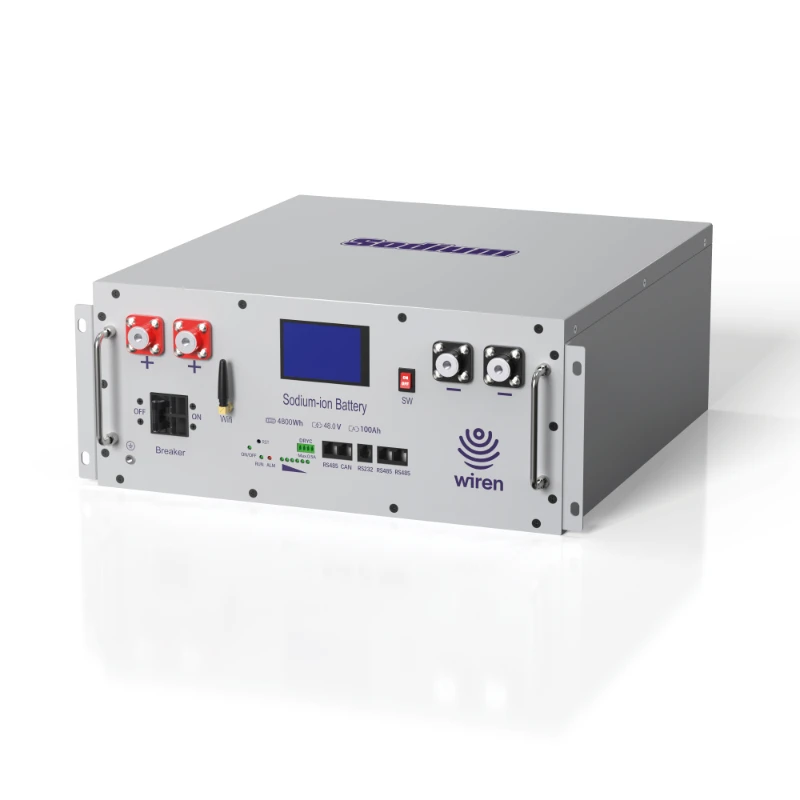

The NA48100 combines 48V nominal voltage, 100Ah rated capacity and 4.8kWh rated energy in a sodium-ion rack module. Its metal enclosure includes an LCD, circuit breaker, power switch and smart BMS for local operation and system integration.
| Model | NA48100 |
|---|---|
| Battery chemistry | Sodium-ion |
| Nominal voltage | 48.0 V |
| Rated capacity | 100 Ah |
| Rated energy | 4.8 kWh |
| Rated charge current | 50 A at 25°C (77°F) |
| Rated discharge current | 100 A at 25°C (77°F) |
| Weight | 53 kg |
| Enclosure protection | IP22 |
| Installation | Rack-mounted |
| Parallel scalability | Up to 63 units, subject to system design and configuration |
| PC software interfaces | RS232 / RS485 |
|---|---|
| Inverter communication interfaces | CAN / RS485 |

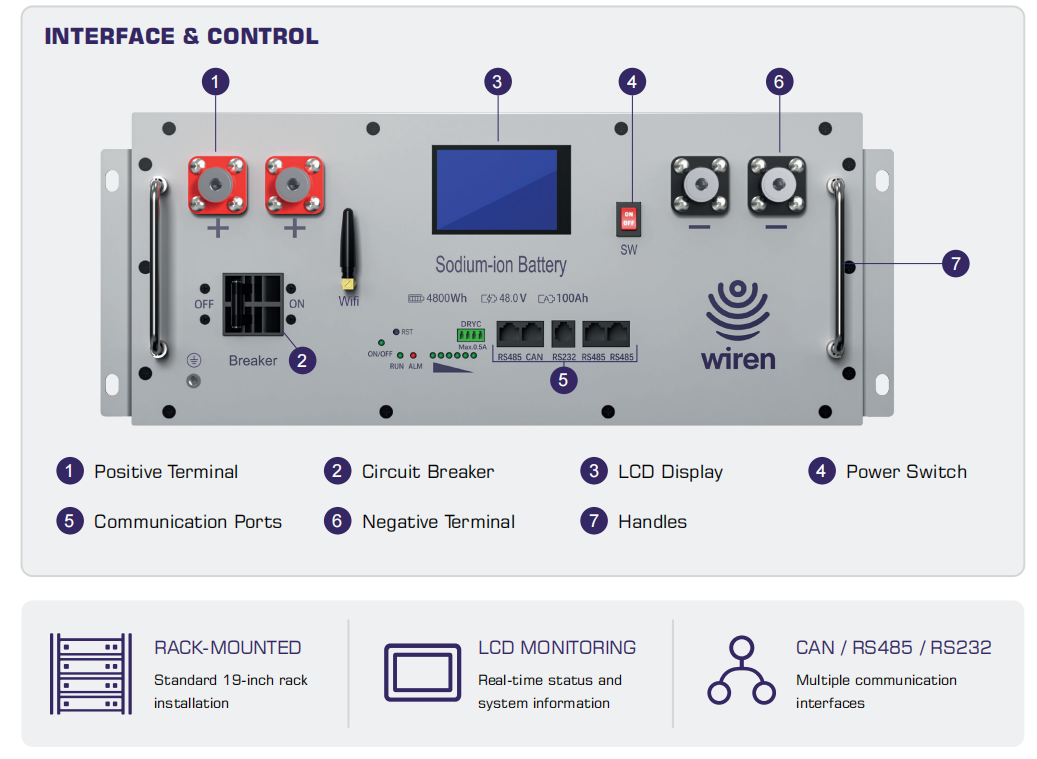

| Local display | LCD |
| Local controls | Circuit breaker and power switch |
| Protection and monitoring | Smart BMS with voltage, current, short-circuit and temperature protection, plus SOC monitoring |
Confirm the inverter model, supported communication protocol, battery-module count and firmware configuration before integration. Communication interfaces alone do not establish compatibility with every inverter.

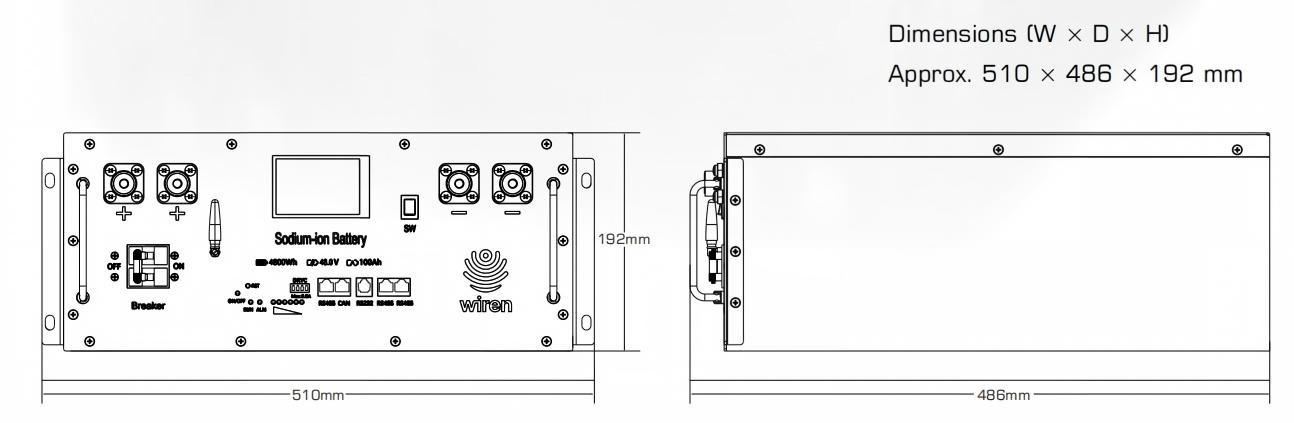

Share your rack dimensions, required usable energy, load profile, inverter model and installation temperatures. Request the approved mechanical drawing and model-specific voltage, current and temperature settings for the proposed system.
For storage planning, the datasheet recommends a state of charge above 50%, inspection every 90 days and recharging below 44.8V. Follow the handling and charging instructions issued for the supplied configuration.
Request NA48100 Integration Support → | Explore Sodium-Ion Batteries
