Wiren SS60 12V 60Ah Sodium-Ion Starting Battery

Wiren SS60 is a 12V 60Ah sodium-ion starting battery with 720Wh nominal energy, 9.0 kg weight and a 1,800A peak discharge rating for 3 seconds. Request vehicle and charging-system matching.

Request a Configuration → | Explore Sodium-Ion Batteries

Energy

12V 60Ah (720Wh)
Weight

9.0KG
Size

244mm*175mm*189mm

Add To Quotion List Next Products Spec Sheet

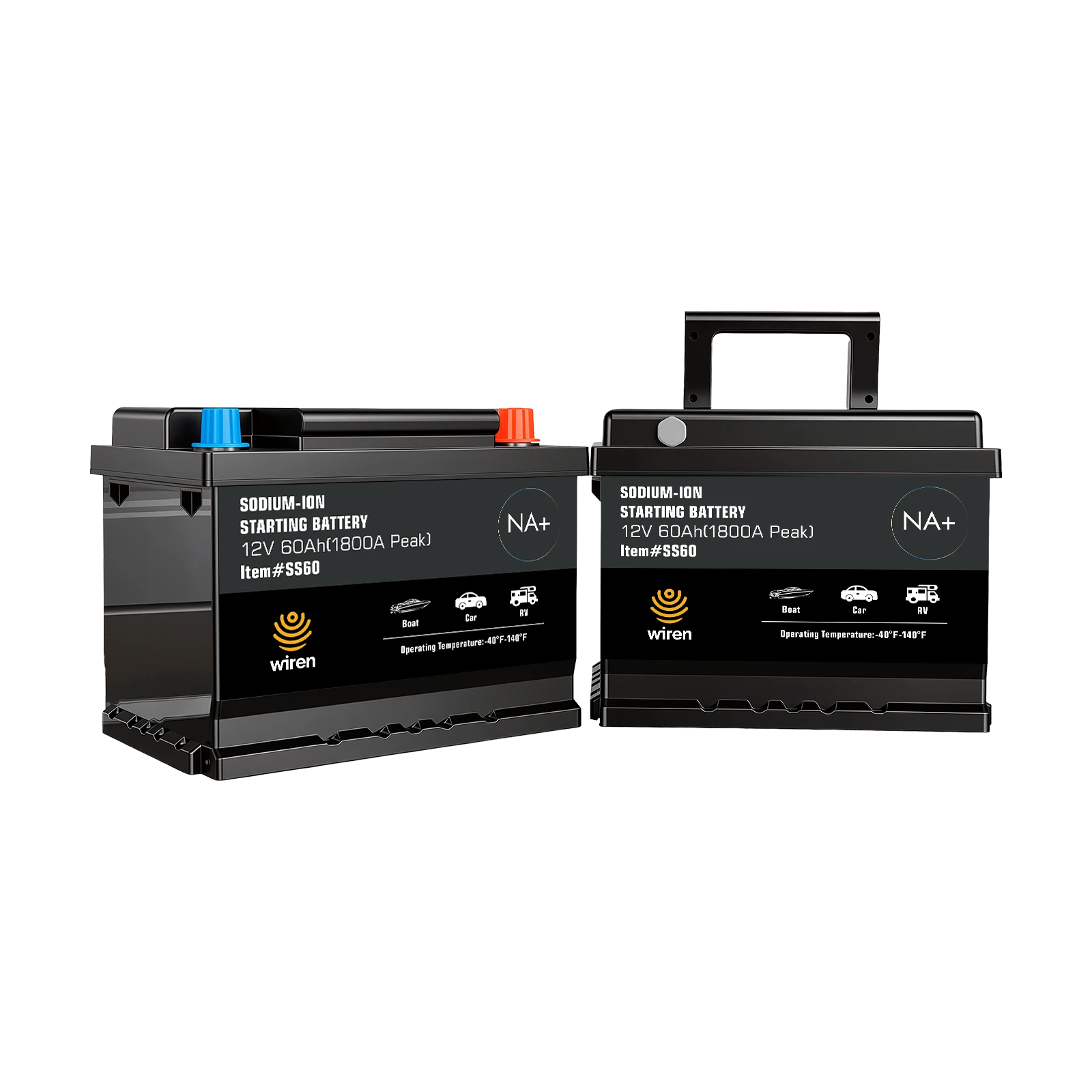

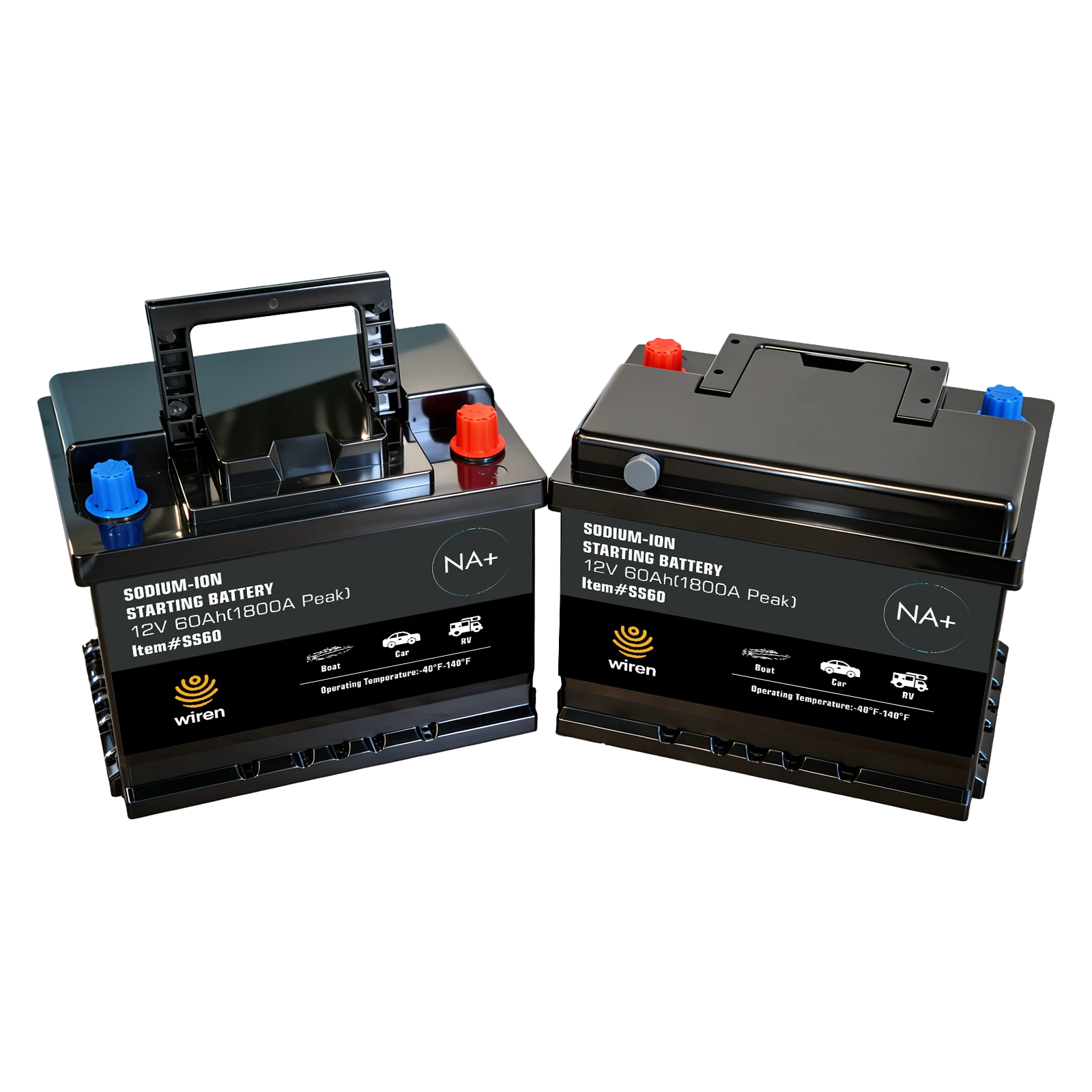

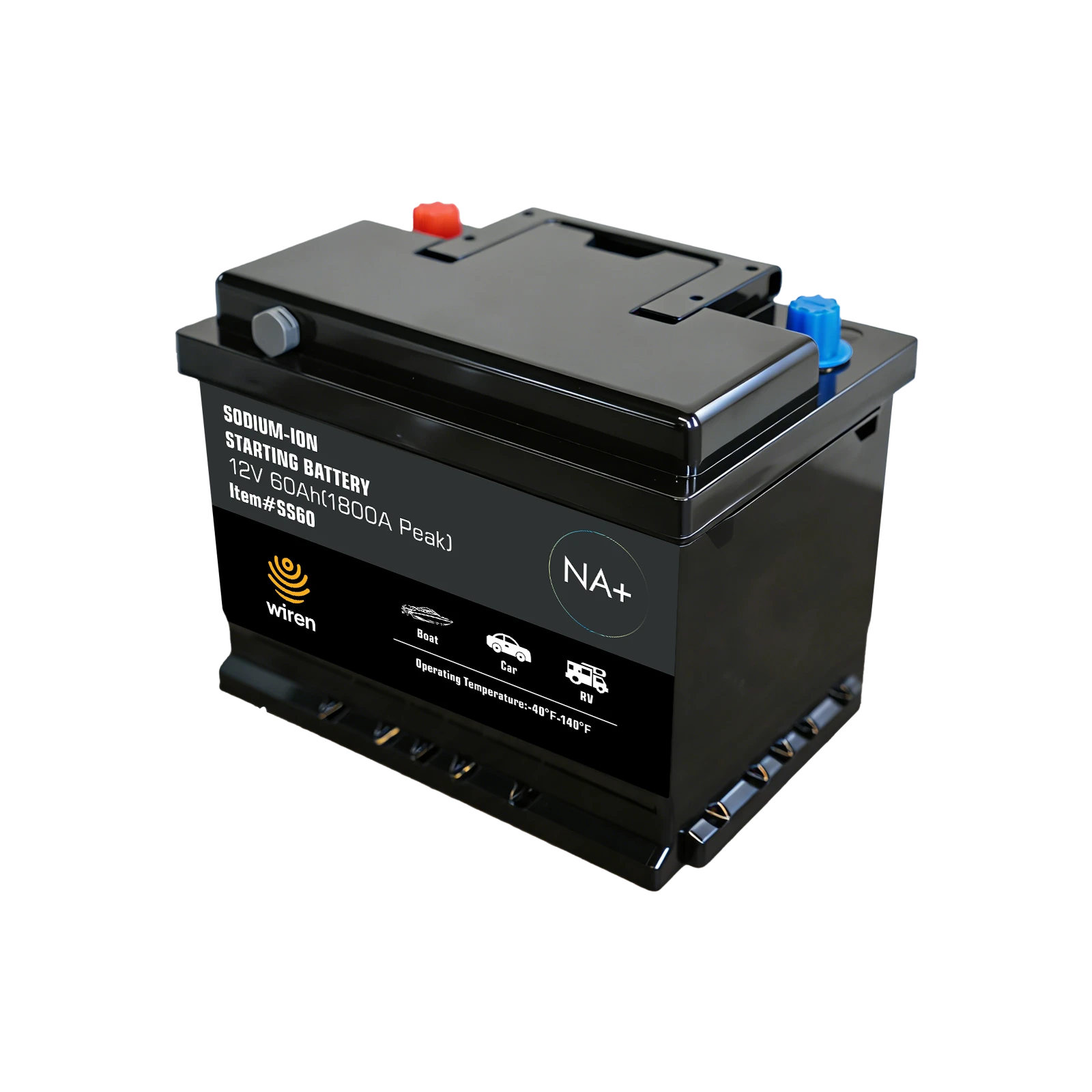

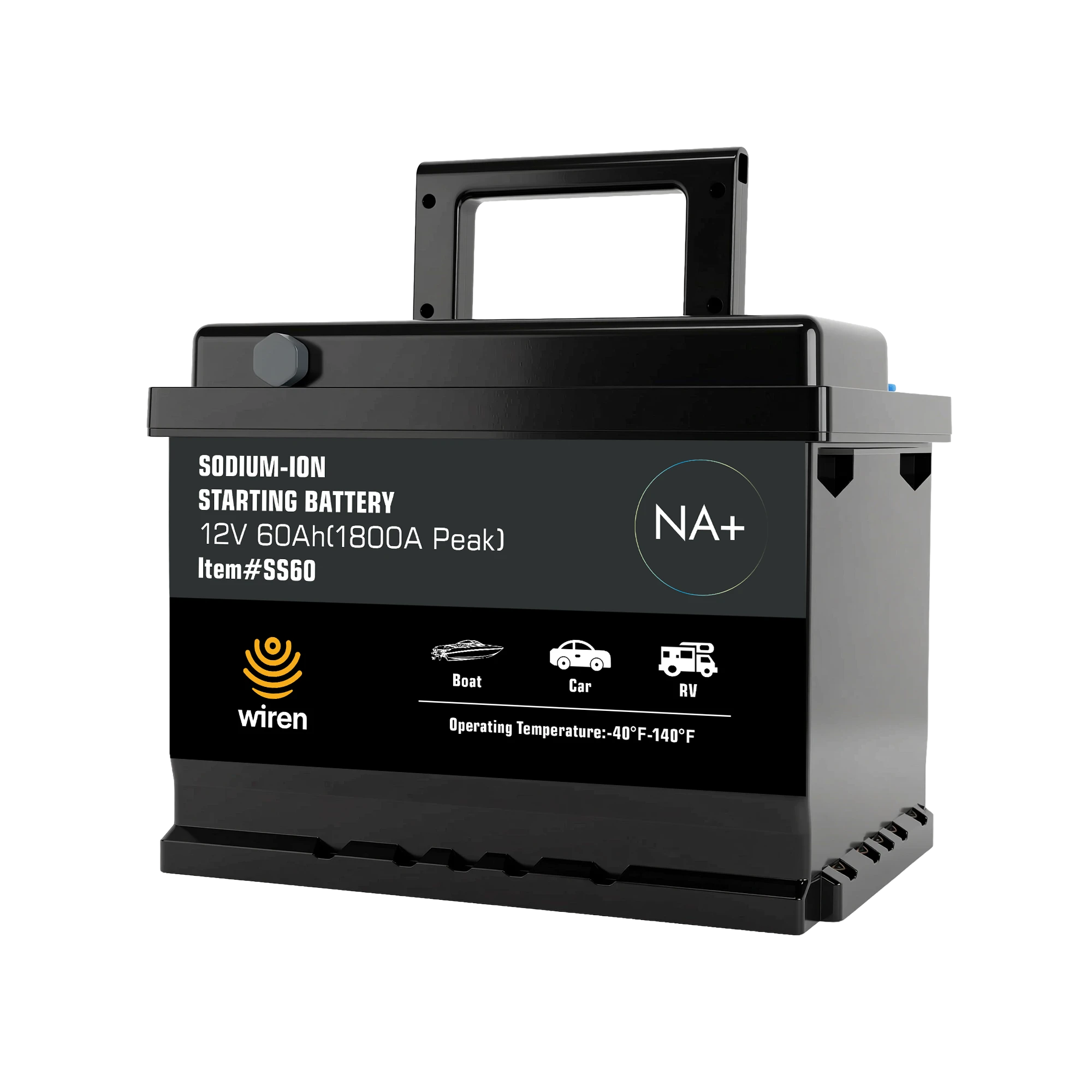

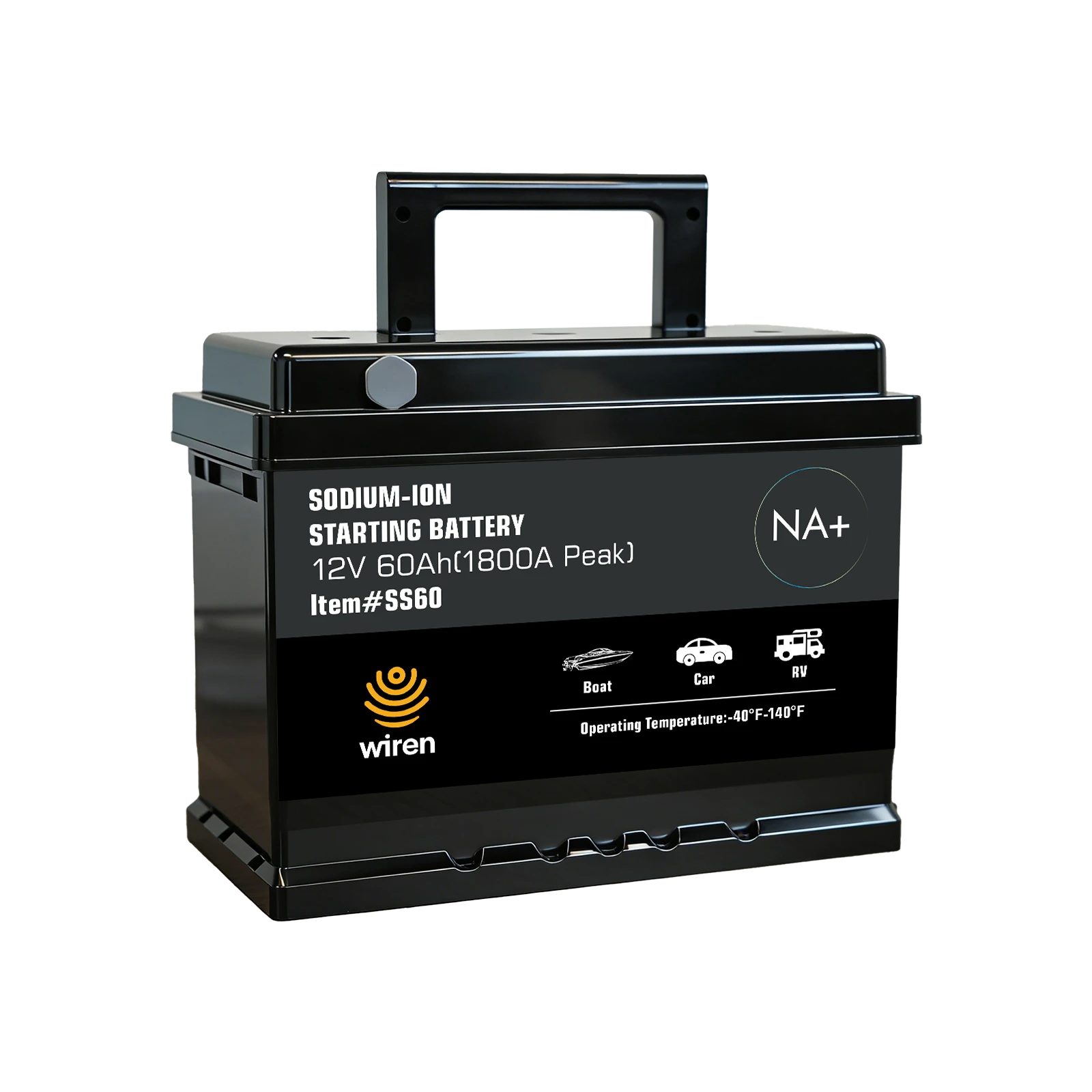

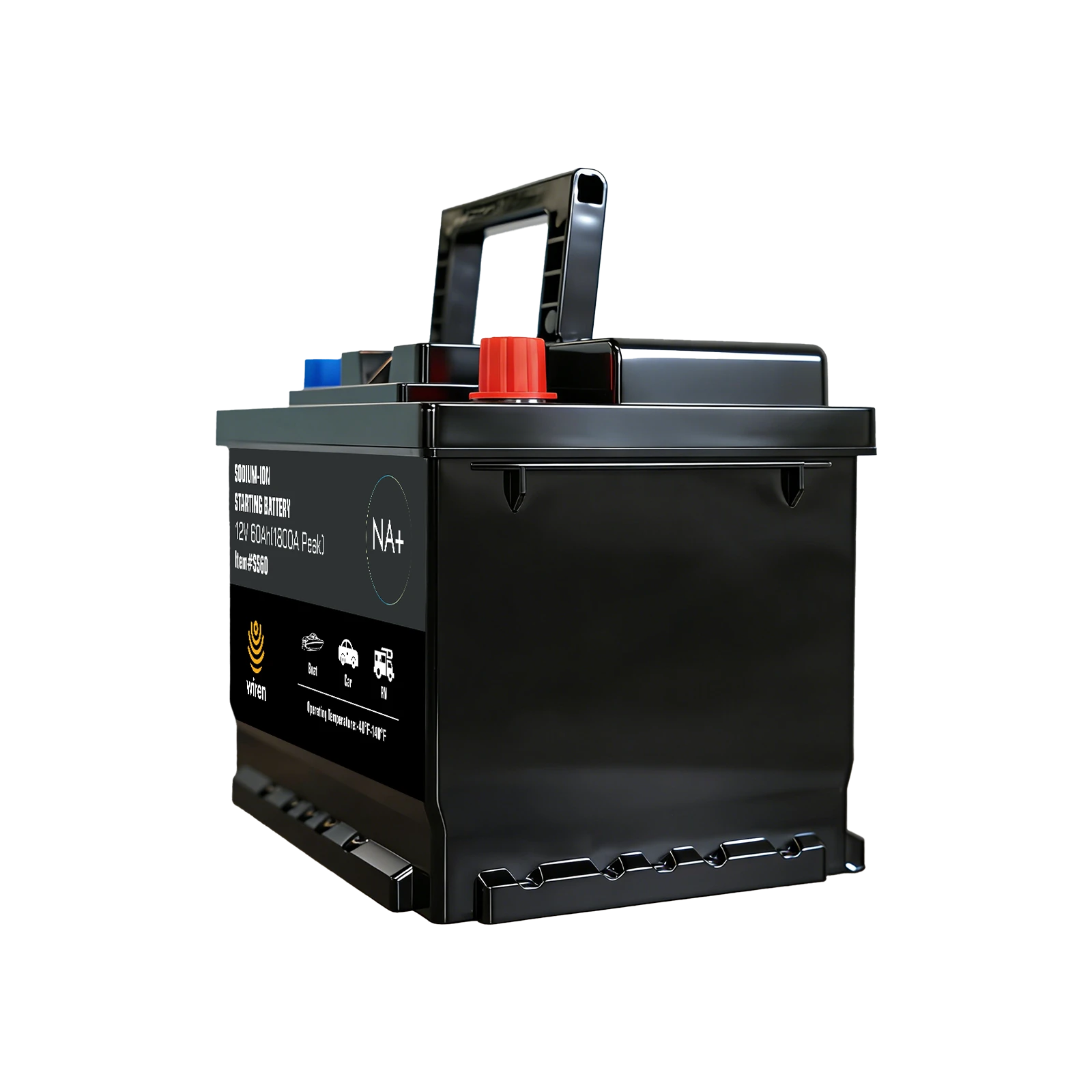

SS60 Sodium-Ion Starting Battery

The Wiren SS60 is built for automotive starting projects that require a 12V sodium-ion battery. Its 60Ah capacity provides 720Wh of nominal energy, with an integrated BMS for cell balancing and voltage, short-circuit and temperature protection.

Core Specifications

Model	Wiren SS60
Battery chemistry	Sodium-ion
Nominal voltage	12 V
Rated capacity	60 Ah
Nominal energy	720 Wh
Weight	9.0 kg
Dimensions	244 × 175 × 189 mm
Continuous discharge current	180 A
Peak discharge current	1,800 A for 3 seconds
Recommended charge current	30 A, subject to approved vehicle and charger settings

Check Vehicle and Charging Compatibility

Send the vehicle model, engine type, original battery code and terminal layout. Wiren can review the battery tray, hold-down arrangement, starter demand and alternator or charger characteristics for the selected configuration.

Confirm vehicle starting-current requirements and the applicable test conditions.
Confirm the approved charging voltage, current limit and temperature range for the exact SS60 version.
For start-stop vehicles, include the vehicle battery sensor and charging-control requirements.

Project Documents and Supply

Request the model-specific technical drawing, approved charge profile, available test reports and shipping documents for your destination. Sample and bulk-order enquiries should include the quantity, market and intended installation.

Check SS60 Vehicle Fitment → | Explore Sodium-Ion Batteries
