Triton 12200 12.8V 200Ah Dual-Purpose Marine Battery
Triton 12200 12.8V 200Ah Dual-Purpose Marine Battery

Triton 12200 12.8V 200Ah Dual-Purpose Marine Battery

The Triton 12200 is a 12.8V 200Ah LiFePO4 marine battery for compatible starting and deep-cycle applications. Its specification lists 2.56kWh nominal energy, active balancing and Bluetooth communication.

Request a Configuration →  |  Explore Related Batteries

  • Marine-grade Safety

  • IP67 Protection

  • Active Balancing

  • Dual Purpose

COMPACT. RUGGED. READY.

IP67-rated protection for harsh marine conditions

High power output for reliable performance

Advanced BMS with active balancing for extended cycle life

Dual-purpose design for starting and deep-cycle applications

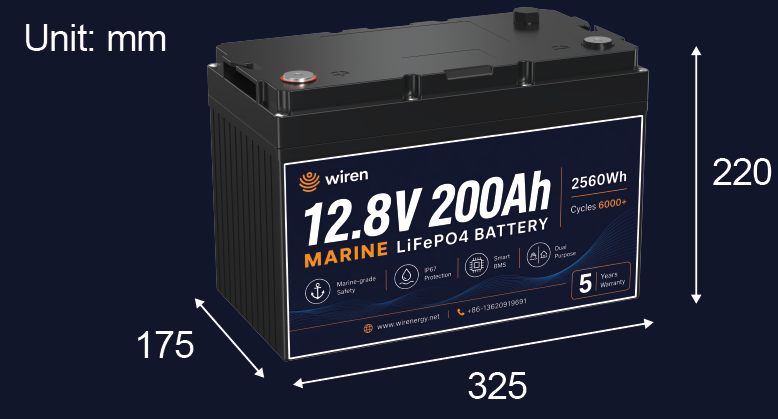

DIMENSIONS



Triton 12200 Dual Purpose Marine Battery



SPECIFICATIONS
Rated Voltage 12.8 V
Voltage Range 10.0–14.4 V
Rated Capacity 200 Ah (2.560 kWh)
Continuous Discharge Current 190 A
Peak Discharge Current 1500 A (Marine Cranking Amps)
Continuous Charge Current 190 A Max.; 95 A Recommended
Discharge Temperature -20°C to 60°C
Charge Temperature -4°C to 55°C
Cell Balancing Active Balancing
Communication Bluetooth
IP Level IP67
Cell Type Nano Prismatic LiFePO4 Cell
Weight Approx. 18.7 kg

Key Features of Triton 12200 12V 200Ah Dual-Purpose Marine Battery

Wiren Triton 12200 is a 12.8V 200Ah dual-purpose LiFePO4 marine battery designed for boat engine starting and deep-cycle onboard power applications. With 2.56kWh energy capacity, 1500A Marine Cranking Amps (MCA), IP67 protection, and smart battery management, this lithium marine battery provides a versatile power solution for fishing boats, recreational boats, and other marine applications.

Explore more Marine LiFePO4 Battery Solutions from Wiren for different marine power and onboard energy requirements.

  • Dual-Purpose Design: Supports compatible marine engine starting and onboard electrical loads.
  • 200Ah Capacity: Provides 2.56kWh nominal energy for deep-cycle marine applications.
  • 1500A MCA: Provides high marine cranking capability for compatible engine starting applications.
  • IP67 Protection: Offers dust-tight and temporary water immersion protection under specified testing conditions.
  • Smart Battery Management: Features active cell balancing and Bluetooth monitoring.
  • LiFePO4 Technology: Provides a lightweight lithium battery alternative to traditional lead-acid marine batteries.

Dual-Purpose Marine Battery for Starting and Deep Cycle

Marine Engine Starting Battery

Triton 12200 is designed to support compatible marine engine starting applications. Its 1500A Marine Cranking Amps (MCA) rating provides high-current starting capability for suitable boat engines. Before installation, confirm engine starting requirements and battery compatibility.

Deep Cycle Power for Onboard Equipment

With 200Ah capacity, this 12V 200Ah deep-cycle marine battery can supply compatible onboard electrical equipment, including lighting, navigation electronics, pumps, and other auxiliary loads. Its dual-purpose design helps combine engine starting and onboard power requirements in one battery solution.

IP67 Protection and Smart LiFePO4 Battery Management

Marine batteries operate in environments exposed to moisture, splashes, and changing temperatures. Triton 12200 features an IP67-rated enclosure to protect the battery against dust and temporary water immersion under specified test conditions.

The integrated battery management system features active cell balancing and Bluetooth monitoring, helping users monitor battery status and maintain balanced cell operation. This makes it a practical option for marine lithium battery applications.

LiFePO4 vs. Traditional Lead-Acid Marine Batteries

Compared with traditional lead-acid marine batteries, LiFePO4 batteries offer several advantages for boat owners and marine equipment operators:

  • Lower Weight: Helps reduce onboard battery weight and installation burden.
  • Low Maintenance: Does not require routine electrolyte maintenance like flooded lead-acid batteries.
  • Smart Monitoring: Supports battery status monitoring through integrated Bluetooth functionality.
  • Charging Efficiency: Supports efficient charging when paired with a compatible LiFePO4 charger.

These characteristics make the Triton 12200 a suitable option for buyers looking for a 200Ah lithium deep-cycle marine battery with engine starting capability.

How to Choose a 12V 200Ah Dual-Purpose Marine Battery

Before selecting a dual-purpose lithium marine battery, consider the following factors:

  • Engine Starting Requirements: Check the engine's required cranking performance and MCA compatibility.
  • Continuous Discharge: Ensure onboard loads remain within the battery's 190A continuous discharge rating.
  • Battery Capacity: Evaluate daily electricity consumption and the required operating time.
  • Charging Compatibility: Select a charger compatible with 12.8V LiFePO4 batteries and the manufacturer's charging recommendations.
  • Installation Conditions: Check battery dimensions, mounting space, ventilation, and electrical connections.

Frequently Asked Questions About Triton 12200 Marine Battery

1. What Does Dual-Purpose Marine Battery Mean?

A dual-purpose marine battery is designed to support both engine starting and deep-cycle power supply for onboard electrical equipment, reducing the need for separate batteries when the application requirements are compatible.

2. What Is the Difference Between MCA and CCA?

MCA (Marine Cranking Amps) measures starting current performance under marine testing conditions, while CCA (Cold Cranking Amps) measures starting performance at a lower temperature. They are different ratings and should not be treated as interchangeable.

3. Can Triton 12200 Power Boat Onboard Equipment?

Yes. Its 200Ah capacity and 2.56kWh nominal energy make it suitable for compatible onboard loads such as lighting, navigation electronics, and pumps, subject to the battery's discharge limits.

4. Is Triton 12200 Waterproof?

Triton 12200 has an IP67-rated enclosure, providing dust-tight protection and protection against temporary immersion under specified testing conditions. It is not designed for permanent underwater operation.

Triton 12200 12.8V 200Ah Dual-Purpose Marine Battery
