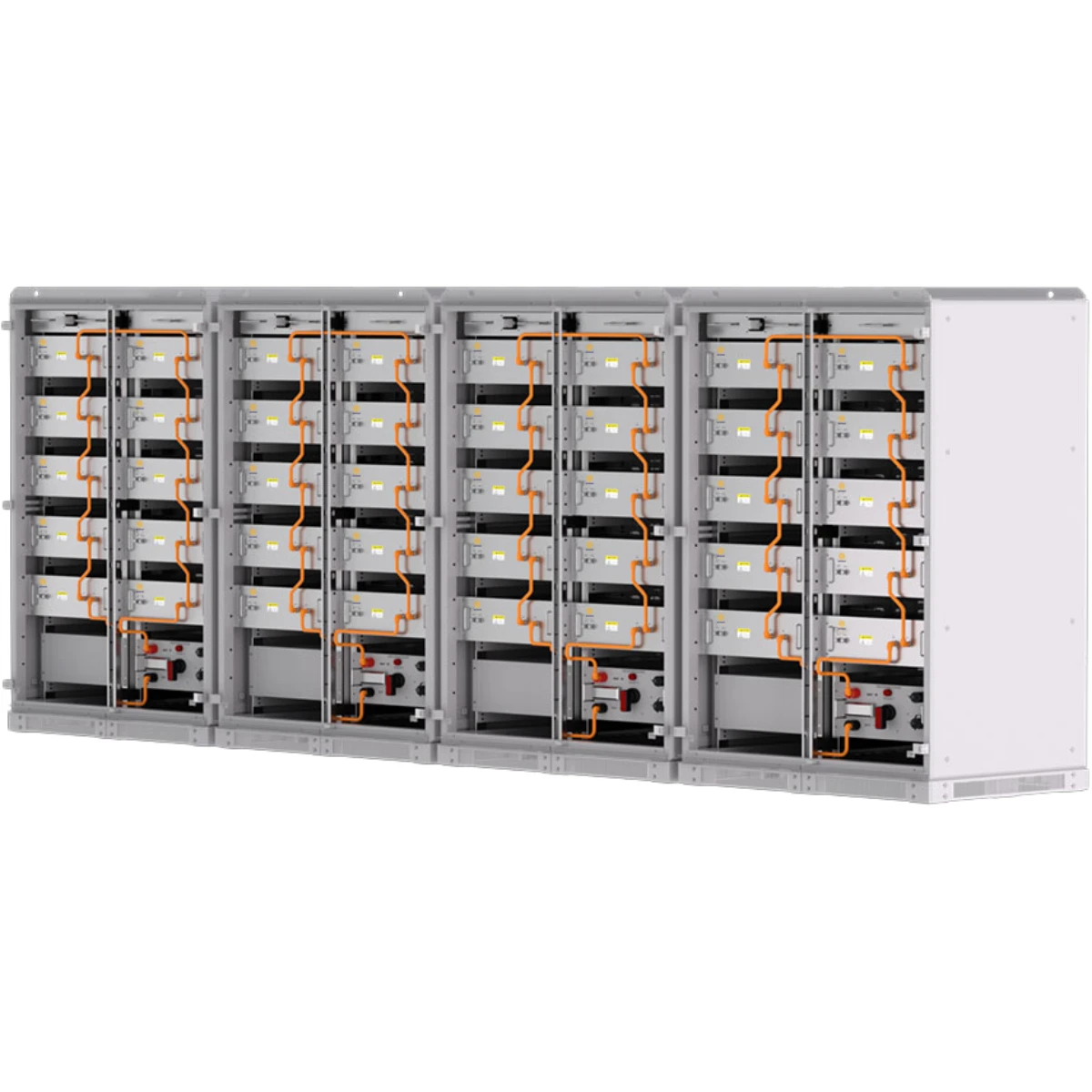

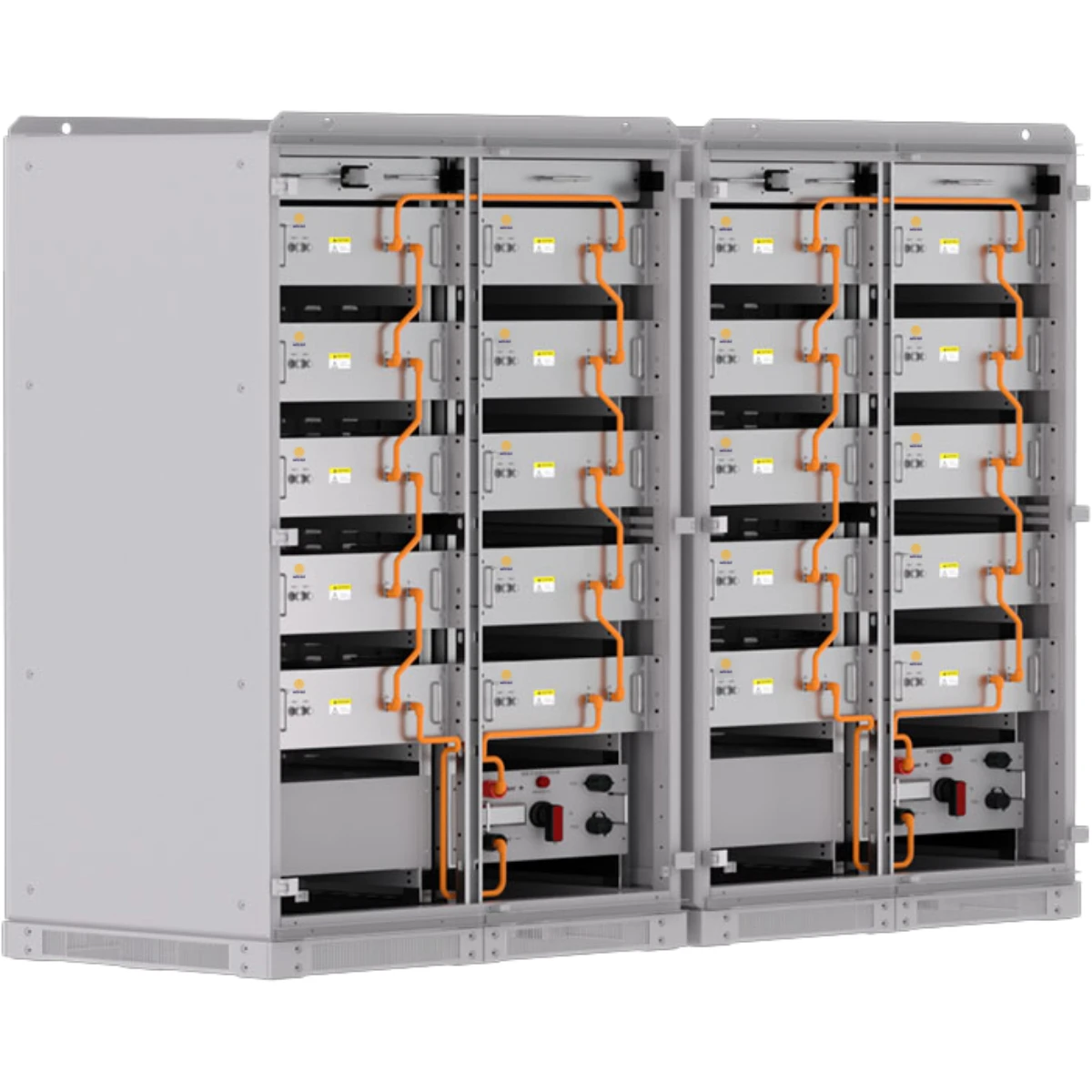

400V 1000V 460Ah 4600Ah DNV Liquid Cooling Preheating 38.4V IP67 LiFePO4 Marine Battery System

Built to meet strict DNV classification standards, the battery system integrates a multi-layer Battery Management System (BMS) for real-time monitoring of voltage, temperature, and system health. Advanced safety features include anti-propagation design, aerosol fire suppression, and an integrated off-gas ventilation duct system to ensure maximum safety even in extreme conditions.

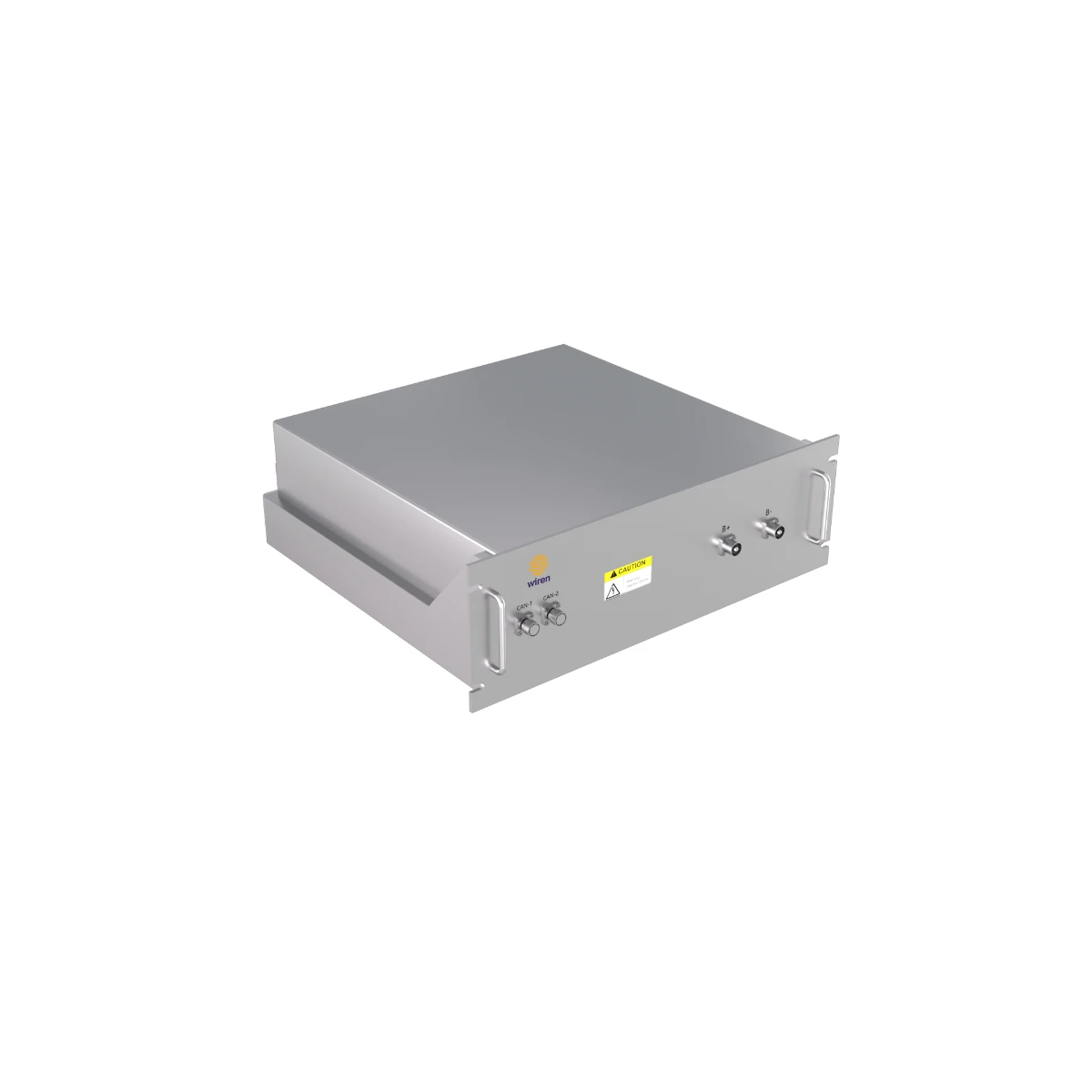

With liquid cooling, IP67-rated modules, and over 3500 charge cycles at 80% depth of discharge, the W-DNV107 delivers exceptional durability and efficiency. Its modular rack design allows easy installation, maintenance, and system expansion, while remote diagnostics and software updates via MSCU provide intelligent control and reduced operational costs

Add To Quotion List Next Products Spec Sheet

Smart Energy Management

300kWh liquid-cooling energy storage system with bi-directional AC output to the grid for grid charging

Safe

Three level protection system and independent fire protection system

Quick Charge

Can provide up to 180 kilowatts of output power for two cars

Quick Recharge

Supports national standard charging stations with single/dual guns for dual-channel fast charging of electric vehicles

400V 1000V 460Ah 4600Ah DNV Liquid Cooling Preheating 38.4V IP67 LiFePO4 Marine Battery System

Model	WT-BEV300
Basic Information
Battery storage capacity [kWh]	300
cell [Ah]	502.5(BYD)
Cycle life at 80%capacity decay	5000
Quality warranty period [years]	1
Machine Performance Parameters
electromagnetic compatibility	A class
noise [dB]	<65
working temperature	-20~50℃
levels of protection	Full IP54 protection The battery pack has an IP67 rating.
Certification and Standards
attestation	CE,GB/T 31467
metric	IEC62619/IEC63056/UN383
Machine
Component type	unitary
Cabinet Transport	Forklift,crane
Cabinet materials	steel
weight [kg]	4250
door	Front,side,and rear doors
Length x Width x Height [m]	3.0x2.4x2.6
Complete isolation architecture
Insulation between the grid and the battery	●
Isolation between Grld and the vehicle	●
Isolation between A and B guns	●
Feed system
alternating current power supply	●
Power Module [kW]×N	60x3
Auxiliary power [kW]	60x3
Three-phase additional connection standard connector	x1
Three-phase auxiliary connection terminals	●
Thermal Management System
Battery cooling	liquid cooling
Battery heating	Liquid heating
Charging gun cooling	natural cooling
Power Module Cooling	natural cooling
Vehicle external charging system
Rated charging power [kW]	120
DC Charging Voltage Platform [V]	150~1000
DC Charging Protocol	GB/T 27930-2023
DC Charging Pile Configuration [A]×N	Rated value is 250x2
Charging port	CCS2x2
Nominal power of a single DC gun [kW]	Maximum value 120
DC Charging Distribution	Flexible allocation
Vehicle external power supply system
Rated power supply [kW]	180
AC power voltage platform [V]	AC380/AC400
AC power frequency	50Hz
Quick charging port
USB	CCS2x2
Rated current per interface [A]	Maximum 250
DC Charging Distribution	Single or double
Information Exchange System
network	4G/Wi-Fi(hardware reserved)/LAN
Sim Installation Table	SIM block
Platform data interaction protocol	OCPP 1.6J
PDA	Hardware resources
GPS	一
Human-machine interface system
Ad	一
touch screen	●
Touchscreen size [inches]	10
Touchscreen OS	User-defined
Maximum number of touchscreens	x1
Voice prompt	一
Touchscreen brightness auto adjust	一
Emergency stop button	●
pilot lamp	●
Maximum number of indicator lights	X2
Indicator color	Blue/green/red
Payment System	●
Invalid payment(VIN code)	一
RFID card payment	●
NFC contactless payment (Apple Pay)	●
POS pay	Supports passwords and keyboards,and credit and debit cards
QR code payment	●
Plug and Charge(ISO15118-2)	一
two-way	Hardware resources
Security Protection System
Anti-theft door lock(universal operation and maintenance lock)	●
Access control switch	●
Water-activated switch	●
fire extinguisher system	●
