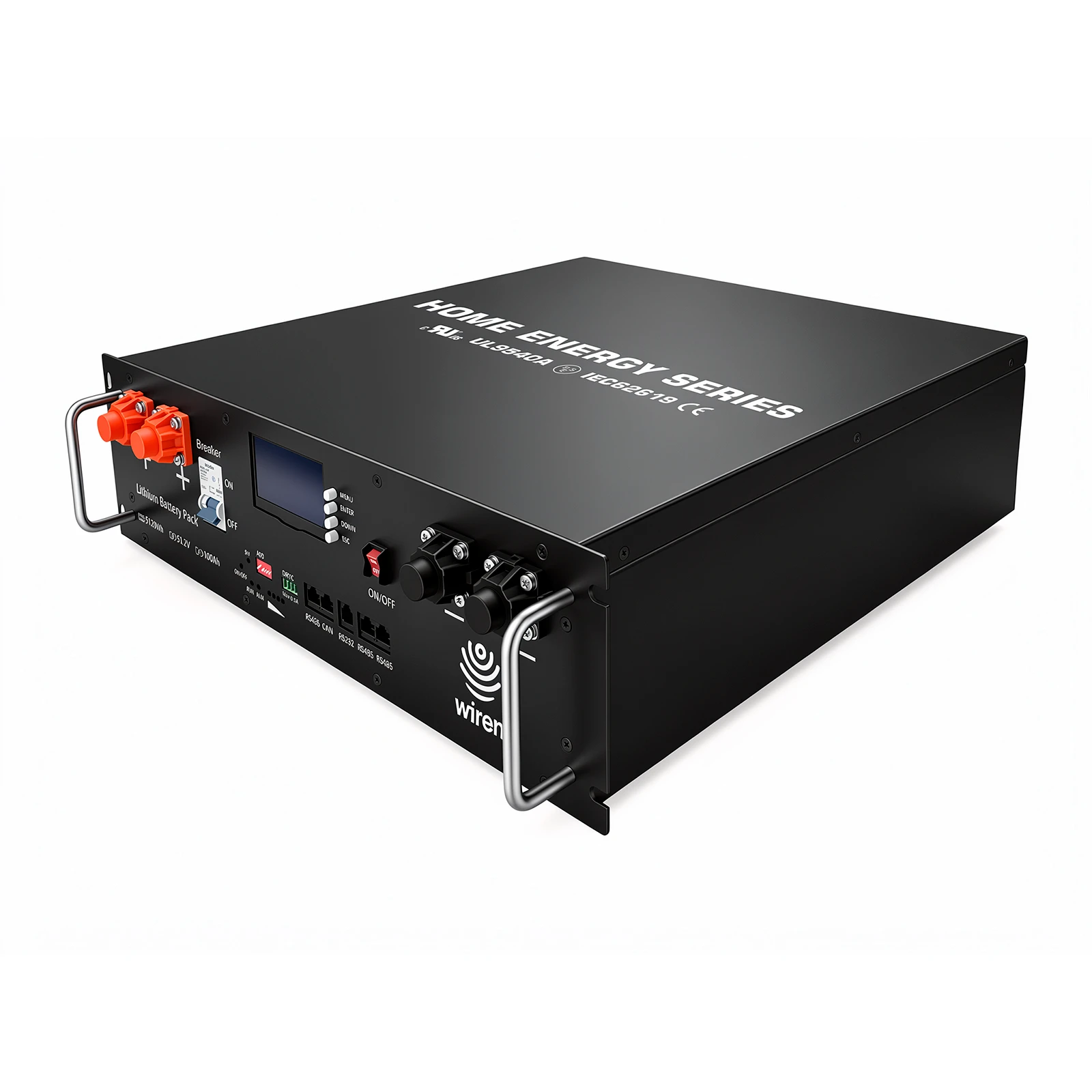

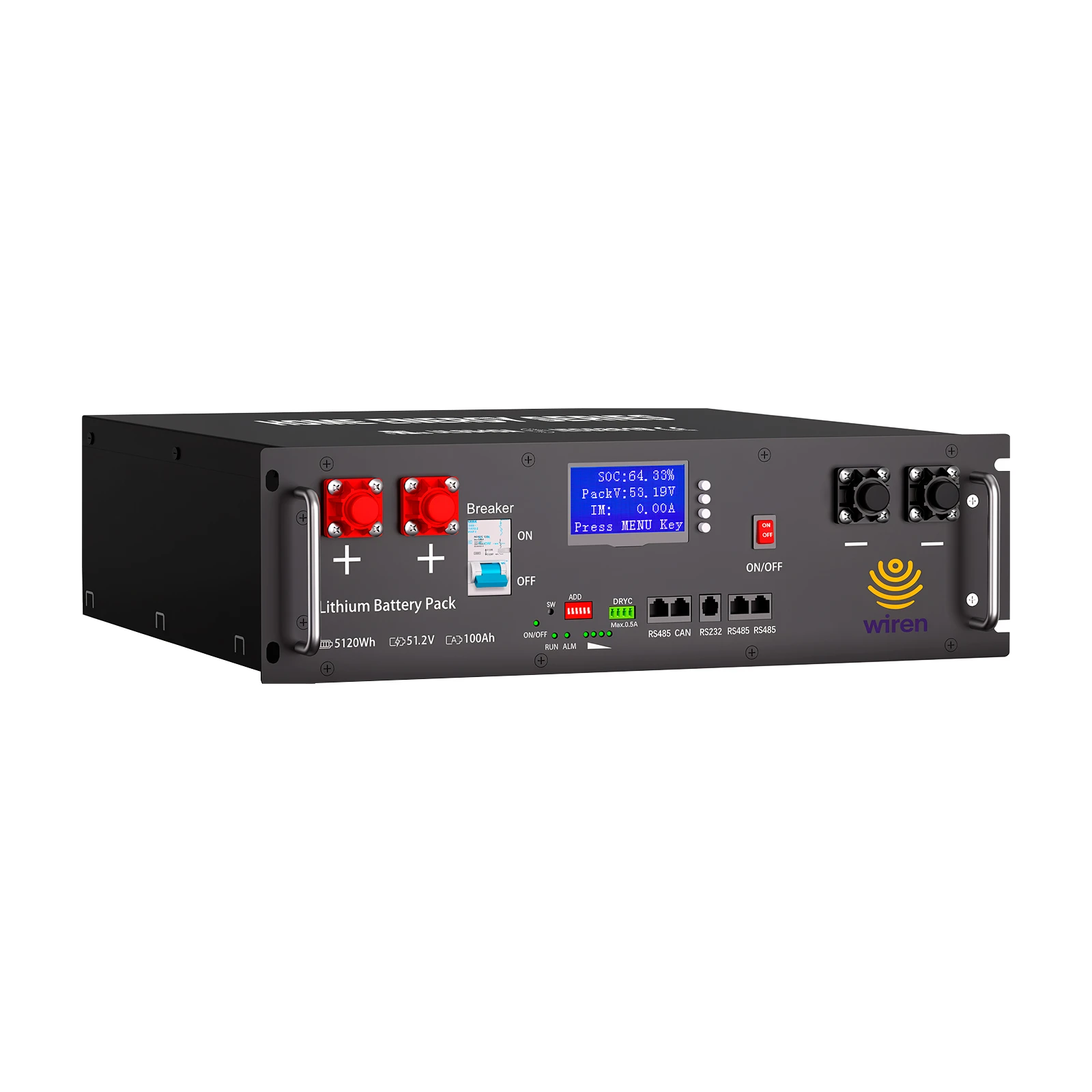

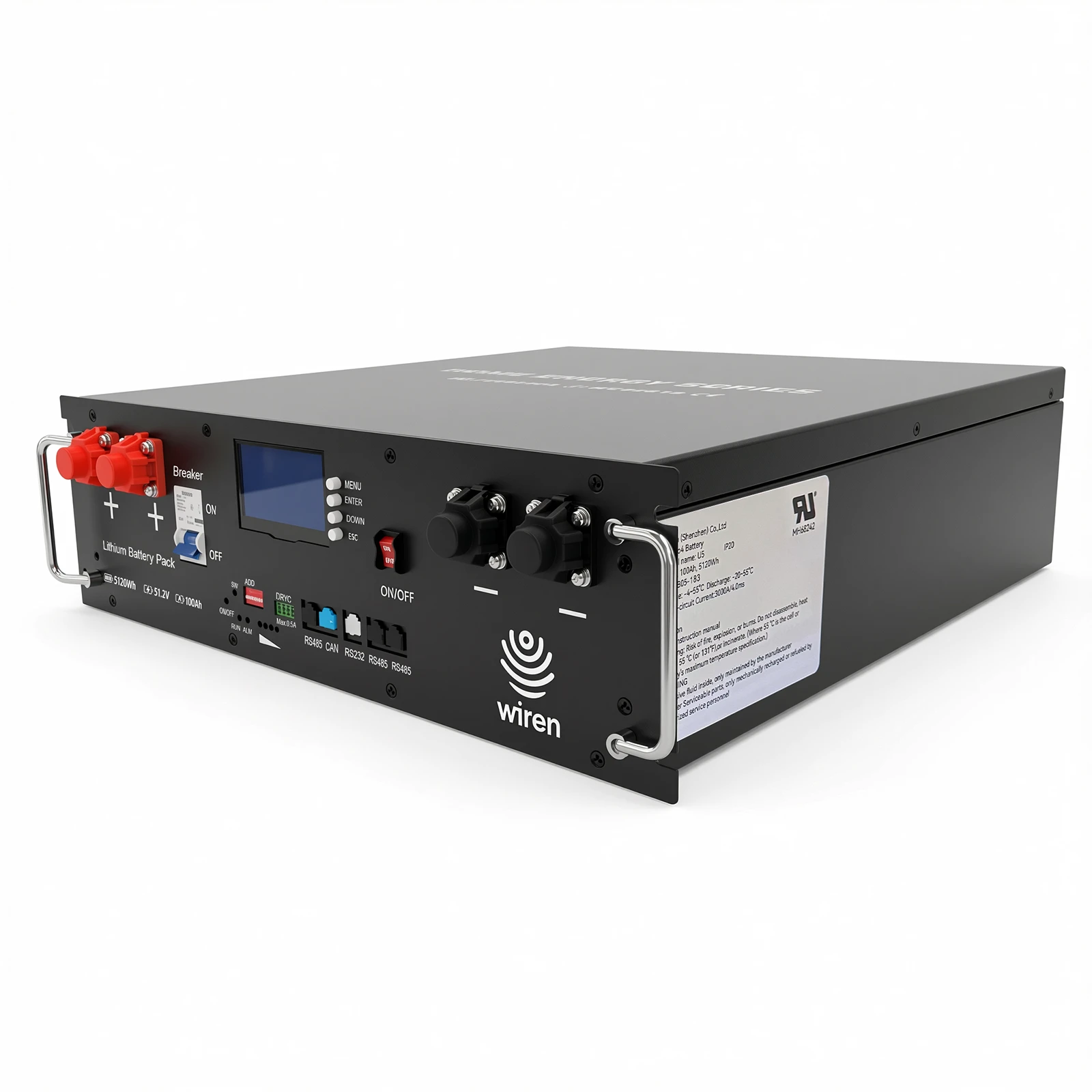

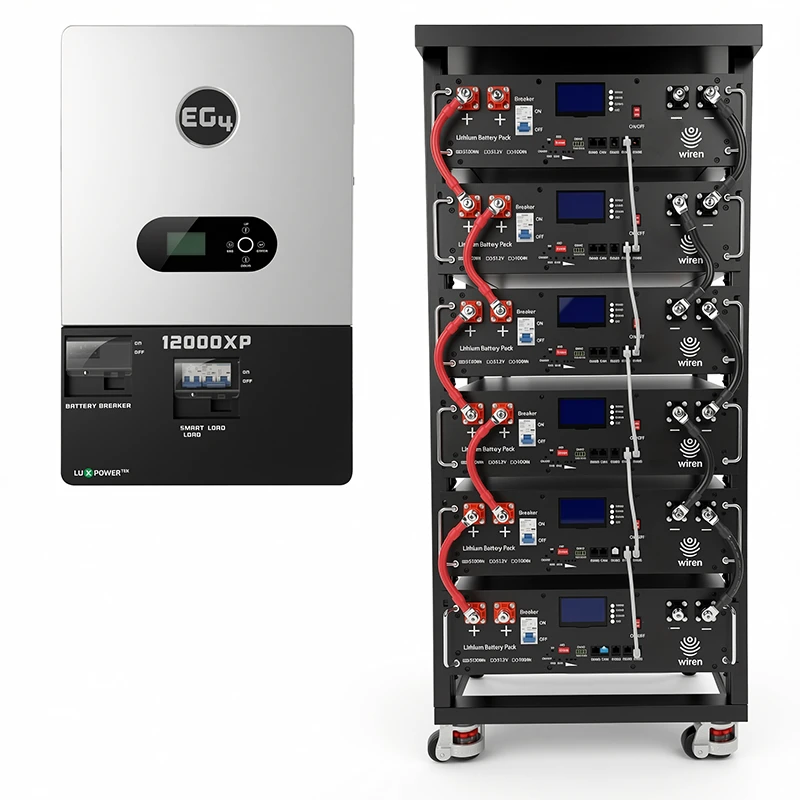

The 51.2V 100Ah server rack battery pack is made of lithium iron phosphate cells. The module design gives the user the flexibility to select the power capacity, providing up to 163.8Kwh with a maximum energy of 63 in parallel.
Safety Certified via:
ISO 9001,ISO14001,UL1973 UL9540A, IEC62619, UKCA, EMC
Energy
51.2V 100Ah (5.12KWh)
Weight
46KG
10 Years
Warranty
CCS
CCS integrates 1-2 FPCs (Insulating film, conductor, adhesive), copper and aluminum bars and other structural parts. It has outstanding advantages in terms of safety, light weight, and regular layout due to its insulation and high integration, ultra-thin thickness, and ultra-softness.
BMS
Lithium batteries manufactured by wiren are optimized by its battery BMS, through monitoring cells, to provide protection against overcharge, over discharge, short circuit. The BMS helps to ensure safe and accurate operation.
HEAVY DUTY BUSBAR / INTERNAL WIRING
Copper busbar, which expands the contact area between copper bar, breaker and module, adopts the technique of high-temperature chemical nickel plating. It performs bet t erin electrical and thermal conductivity, corrosion resistance and low internal resistance and ensures stable performance, large space and simple repair.

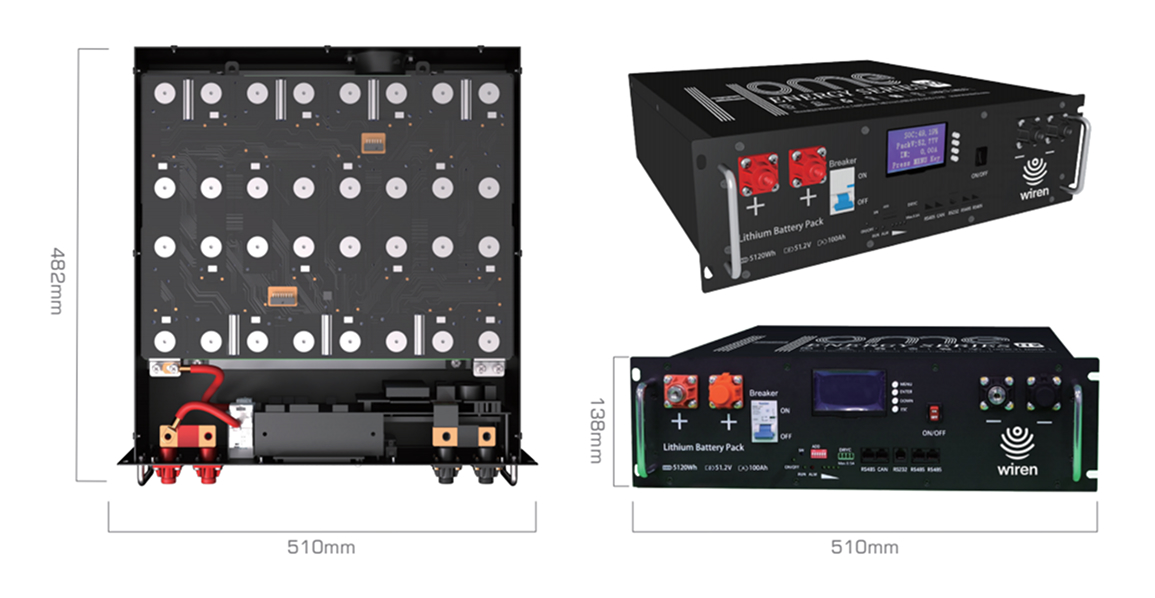

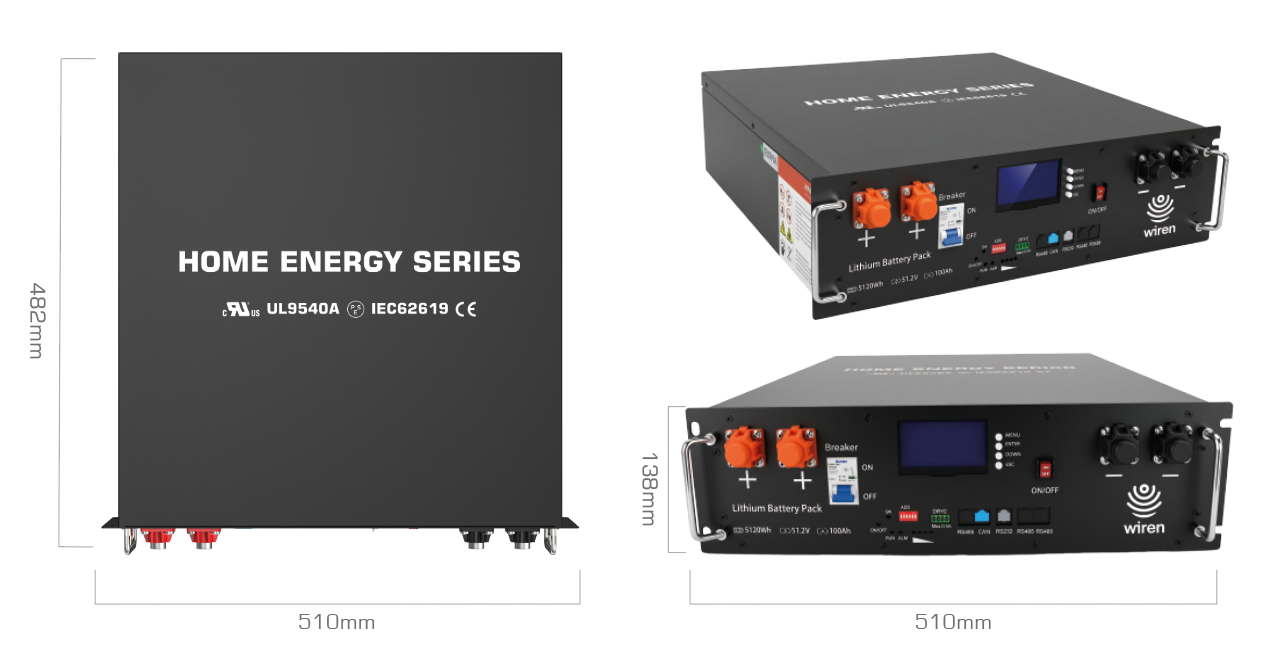

U5 with 3U DIMENSIONS
| Technical Specification | U5(51.2V100Ah) | ||||||
| Operation Voltage | 44.8V~57.5V | ||||||
| Dimensions | 482*510*138mm | ||||||
| Weight | 46KG | ||||||
| Warranty | 10Years | ||||||
| LiFe Time | 15 Years @68°F | ||||||
| Cycle life | 6000+ | ||||||
| Energy | 51.2V 100Ah 〔5.12KWh〕 | ||||||
| Max.Charge Voltage | 58.4VAdjustable] | ||||||
| Rated Charge Current | 50A 〔2.56KW〕@77F | ||||||
| Rated Discharge Current | 100A〔5.12KW〕@77F | ||||||

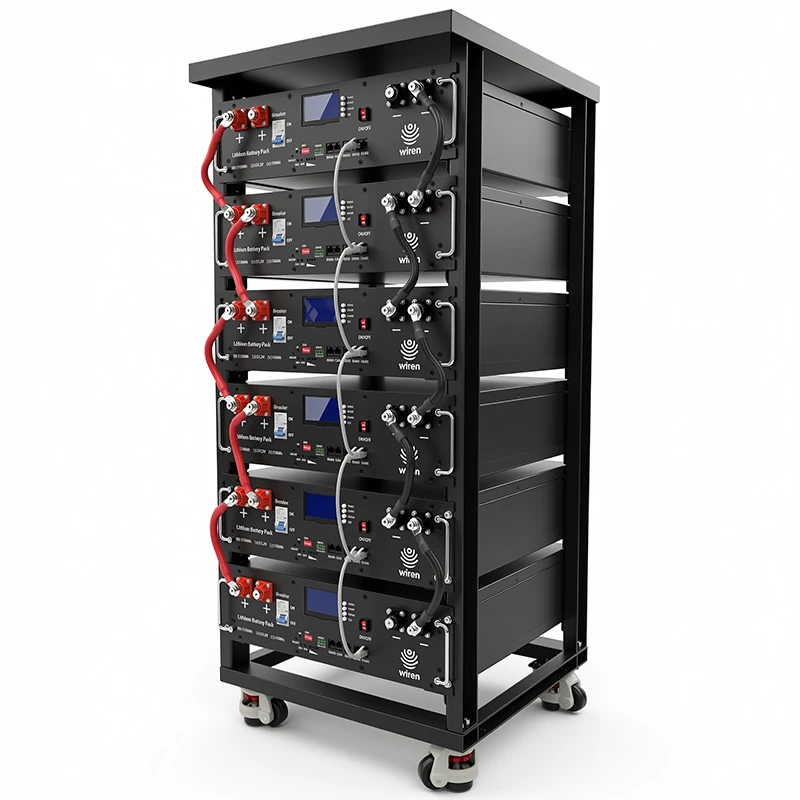

| Energy Scalable | Max.63units in parallel〔tested〕 | ||||||
| Enclose Protection Rate | IP22 | ||||||
| Communication | RS232/RS485→PC software CAN/RS485→Inverters |
||||||
| Storage | Recommended stored at above 50%SOC, test @90 Days,recharge if below 52V |
||||||
| BMS Parameters | |||||||
| Charge | Spec | Delay | Recovery | ||||
| Cell Voltage Protection | 3.65V | 1 sec | 3.45V | ||||
| Module Voltage Protection | 58.2V | 1 sec | 13.8V | ||||
| Over Charging Current 1 | >99A | 1 sec | |||||
| Over Charging Current 2 | >110A | 0.3 sec | |||||
| Temperature Protection | <-5℃ or>65℃ | 1 sec | >0℃ or<60℃ | ||||
| Discharge | |||||||
| Cell Voltage Protection | 2.5V | 1 sec | 2.7V | ||||
| Module Voltage Protection | 40.2V | 1 sec | 43.2V | ||||
| Over Discharging Current 1 | >99A | 1sec | |||||
| Over Discharging Current 2 | >130A | 0.3 sec | |||||
| Short-Circuit | >260A | 0.5 mS | |||||
| Temperature Protection | <-20℃ or>70℃ | 4sec | 4>-15℃ or<65℃ | ||||
| BMS | Parameter | Condition | |||||
| PCB Temperature Protection | >90℃ | 4 sec | <85℃ | ||||
| Temperature Accuracy | ≤2℃ | Cycle Measurement | Measuring Range -40 to 100℃ | ||||
| Voltage Accuracy | 10mV(cell) | Cycle Measurement | For Cells &Module | ||||
| Current Accuracy | 2% | Cycle Measurement | Measuring Range -200 to 200℃ | ||||
| SOC | 5% | Integral Calculation | |||||
| Power Consumption -Sleep/Off Mode | <330uA | Sleep &Off Mode | Storage/Transport | ||||
| Power Consumption -Operating Mode | <80mA | Operating Mode | Charging/Discharging | ||||
