Easy installation, operation and maintenance
Highly integrated, convenient for transportation, operation and maintenance
Fully pre-assembled, no need for on-site installation of battery modules
Data centers IT infrastructure Datacenter
Hospital
Commercial building
Transportation & smart infrastructure
Product Features
Easy installation, operation and maintenance
Highly integrated, convenient for transportation, operation and maintenance
Fully pre-assembled, no need for on-site installation of battery modules
Fully functional debugging, meets the requirements for many scenarios with simple configurations available for use
Safe and Reliable
Real-time acquisition of critical data such as cell voltage, temperature, current, and insulation enables early prediction, timely intervention, and emergency disconnection.
Multiple redundant protection measures are implemented to achieve various protection functions including overcurrent, overvoltage, and short-circuit protection. The dual protection mechanism in the protection circuit prevents abnormal operation of protection functions caused by single faults.
High discharge rate
Support 1C ~ 4C discharge
Supports up to 5-8 battery modules in series
Supports up to 6 racks in parallel
Long Operating Life, Support Full Power charge and discharge
Intelligent Air cooling ensure higher efficiency Intelligent Air cooling prolongs battery life
Battery cells operate in an environmentally friendly manner, ensuring charge and discharge power.
Smart cooling system prevents heat accumulation
User-Friendly
It supports communication with various mainstream inverters including mainstream UPS including KSTAR and EAST.
Customers may also provide protocols for compatibility with inverters from other brands.
Remote Data Monitoring and Display
Remote data viewing and monitoring are available

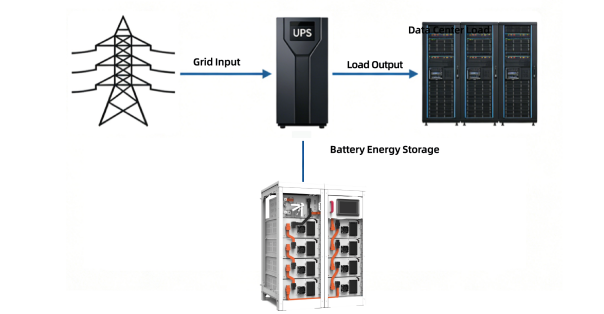

System chart
Specification
| Module Model | UPS1C6 | UPS2C6 | UPS4C2 | UPS4CS |
| DC (Battery) | LiFePO4 Lithium Iron Phosphate | |||
| Cells type | 3.2V100Ah | 3.2V100Ah | 3.2V50Ah | 3.2V50Ah |
| Cell specification | ||||
| Discharge rate | 20A | 25A | 30A | 35A |
| Module of battery capacity | 2051P (6.4kWh) | 2051P (6.4kWh) | 1651P (2.56kWh) | 1652P (5.12kWh) |
| Module size | 440mm x 149mm x 590mm | 440mm x 149mm x 590mm | 490mm x 220mm x 463mm | 424mm x 240mm x 945mm |
| Battery rack assembly | 100S1P-160S1P (5-8 packs) | 100S1P-160S1P (5-8 packs) | 96S1P-160S1P (6-10 packs) | 96S2P-160S2P (6-10 packs) |
| Battery rack capacity | 230kWh-51.2kWh | 320kWh-51.2kWh | 15.36kWh-25.6kWh | 30.72kWh-51.2kWh |
| Battery rack parallel quantity | 1/2/3/4/5/6 | 1/2/3/4/5/6 | 1/2/4/5/6 | 1/2/3/4/5/6 |
| Battery system capacity | 3240kWh-307.2kWh | 3240kWh-307.2kWh | 1536kWh-153.6kWh | 3027kWh-307.2kWh |
| Max. power | 100A*300kW-300kW | 64kW-614kW | 60kW-600kW | 120kW-1200kW |
| Max. current | 100A*(rack parallel quantity) | 200A*(rack parallel quantity) | 200A*(rack parallel quantity) | 200A*2N(rack parallel quantity) |
| Battery rated voltage | 64(n=n-pack quantity) (2.620"n V-3.6*20"n V) | 64(n=n-pack quantity) (2.620"n V -3.6*20"n V) | 51.2(n=pack quantity) (2.616"n V-3.6*16"n V) | 51.2(n=pack quantity) (2.6+16"n V-3.616"n V) |
| General Data | |
| Cabinet size (W * D * H) | TBD |
| Weight | TBD |
| Max. cycle efficiency | >90% |
| IP Rating | Optional(IP20) |
| Auxiliary power supply | Self-powered, Externally powered |
| Corrosion resistance rating | Optional(C3/C4/C5) |
| Operating humidity range | 0%-100%(Non-condensing) |
| Operating temperature range | -30°C-50°C(>45°Cderating) |
| Max. operation altitude | >3000m derating |
| Battery cabinet cooling method | Air Cooling |
| Fire safety configuration | Gas-fused adhesive fire extinguisher with temperature sensing inside battery box |
| Communication | Ethernet, RS485, CAN, 4G |
| System protection | Voltage inspection and protection, temperature inspection and protection, current inspection and protection, insulation inspection and protection |
